Swii

The depth of Swii is 0-lm, but the sealing can reach to 5m.

The Swii speed has 2 gears. In general weight (40kg), the high speed is lm/s, the low speedis 0.6m/s. The gears can be changed by APP, and can still maintain the gear after shutdown.

ls it safe? "The floater material of Swii is EVA, which is a new environmental protection foamingmaterial. And EVA is a kind of aseismatic, adiabatic and moistureproof certified material.you can use it safely."

After use, put Swii in the clean water. Click the function "clean itself" on your mobile APP.Then the propeller will turn and clean by itself.

The proper environment temperature is -5'c to 40c. it is not recommended to use it above 40℃.

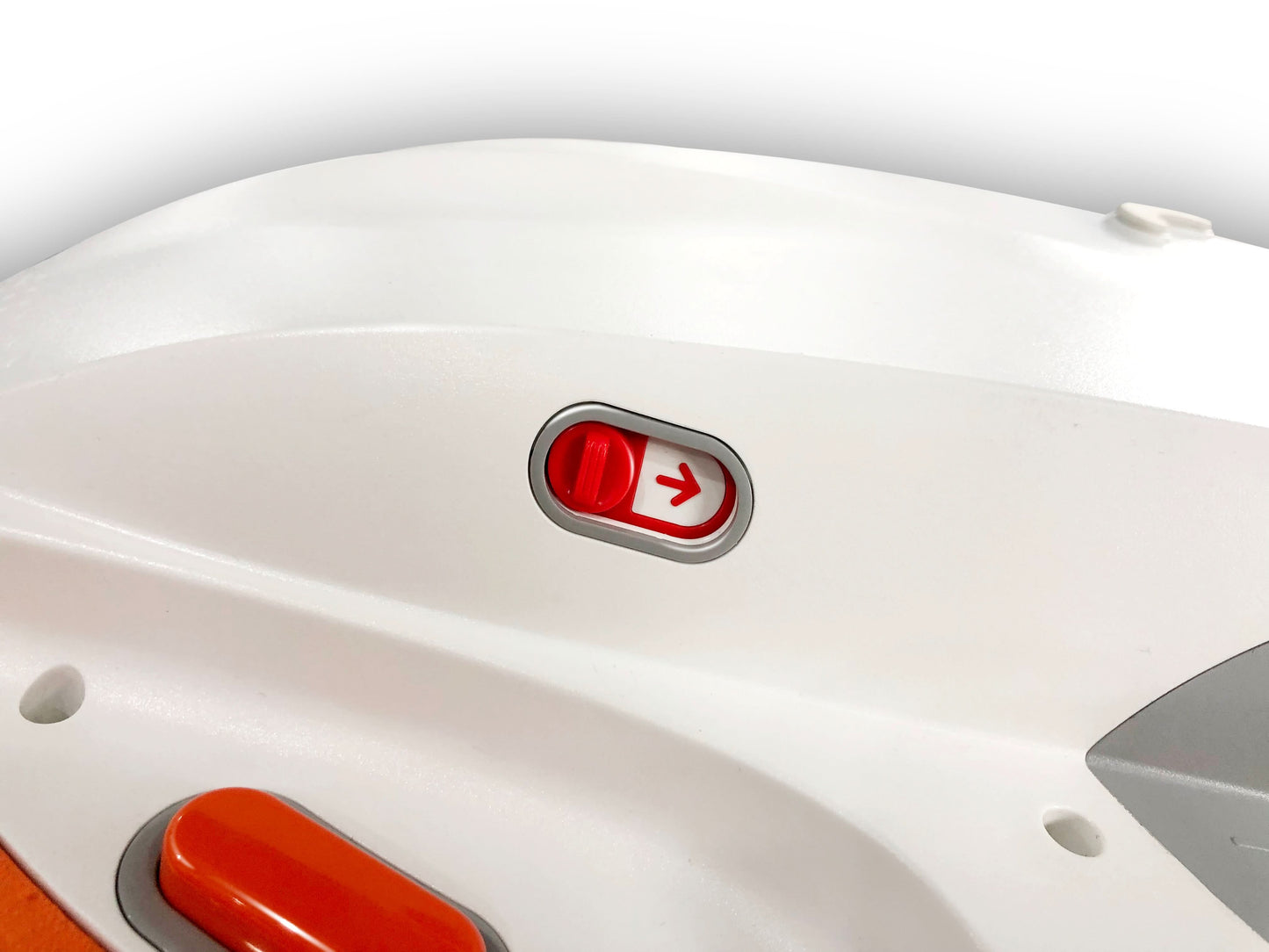

Open the master switch, the breathing light will be on. The light color is different according to your selection. By default, the blinking green light shows 60% power, yellow 30%, red 10%The long red light shows the low power under 10%.

The Swii speed has 2 gears. In general weight (40kg), the high speed is im/s, the low speedis 0.6m/s. The qears can be changed by APP, and can still maintain the gear after shutdown.

The Swii has been strictly tested and the sound won't exceed 80dB. lmproper maintenance or foreign objects in the propeller may cause noise.

It may be caused by the low battery power, propeller twined by objects, or the heavyweight.

Please check if there is any foreign object in the propeller, then you can contact SUBLUE for technical support.

Yes. The motor will automatically stop owing to overload protection.

The Swii buoyancy is 6kg.

Please take the battery out, and open the thruster front cover, then get out the propeller to clean the objects. For details, please contact SUBLUE or the dealer for support.

Please confirm whether the propeller is entangled by objects. The thrust is vary from high and low speed. please select the proper speed. And the using method, weight and height will also influence the thrust. Please click the link to see the user guide.

If there is noise when Swii operating in the air, lease check whether the propeller is entangling by foreign objects, please clear and maintain the machine according to the user manual. if there is serious noise when using in water, please contact after-sales for support.

Please contact SUBLUE or the dealer for support.

Please check if there is any foreign object in the propeller and whether the front and back cover is damaged, or you can contact SUBLUE for technical support.

Yes. The motor will automatically stop owing to overload protection.

Battery life depends on the using environment, height and weight. Under normal circumstance, the average 98Wh battery life is about 30min, the 158Wh is about 45min.

Battery storage temperature: 0C-40c, storage humidity:60+25%RH, maintain the power about 30-50%, stored separately in well-ventilated place. Please charge it once every three months. Do not charge the battery below O°C.

This may be caused by foreign objects entering, leading copper to electrolyze, appearinggreen stains and steel rust. Please contact your dealer for support, and long use is not recommended. in a short time, you can also smear some vaseline on the copper sheet.

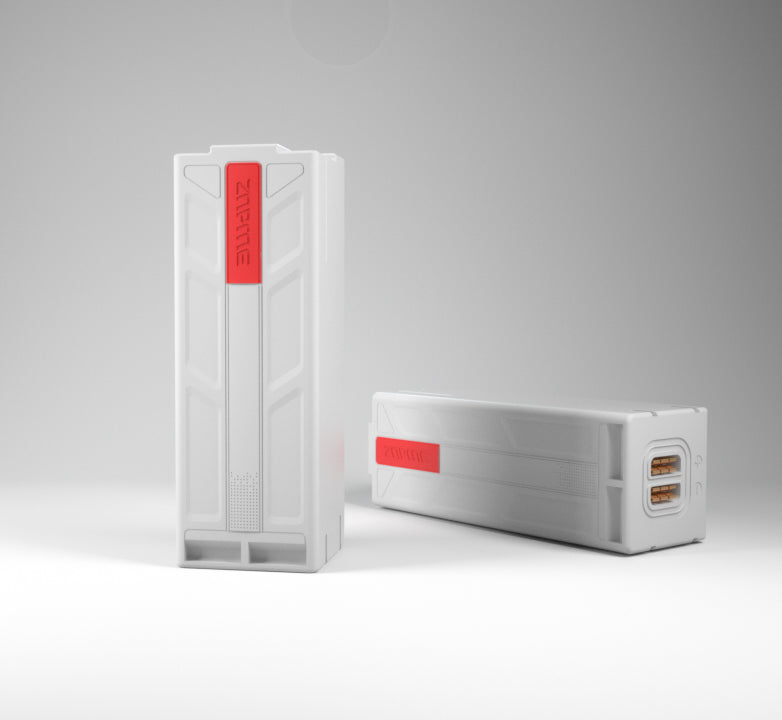

The battery type: lithium-ion battery. Rated capacity: 6600mAh &10670mAh. Ratedvoltage:14.8 v. Charging voltage:16.8 v. Weight: about 750g for 98Wh, 1100g for 158Wh, both batteries have the same appearance. Length:17imm. Width:58mm. Thickness: 60mm.

It is mostly caused by improper maintenance, please follow the maintenance instruction of user manual to avoid or reduce this problem.

Lithium battery overcharge and over discharge may cause this problem, please do not continue to use. And contact your dealer or SUBLUE to purchase or replace a new battery

Note: Before using the equipment, please read the user manual for battery maintenance which details the correct process for charging, using, storing and transporting of battery.

Note: The battery as a consumable item is not covered by the warranty.

You can purchase the spare battery by the SUBLUE official website or consulting your local dealer.

The battery is a lithium battery and will be heat under normal use. If it is overheated, please contact your dealer or SUBLUE for support.

The battery is a lithium battery which is inaction in a low temperature. lf used in that environment, the capacity will drop sharply. Therefore we recommend to use it at 0°C-40C.

The battery capacity is 6600mAh & 10670mAh.

After use, put Swii in the clean water. Click the function "clean itself" on your mobile APP then the propeller will turn and clean by itself.

After use, put Swii in the clean water. Click the function "clean itself" on your mobile APP then the propeller will turn and clean by itself.

Input: AC 100-240V~50/60HZ 1.8A; Output: Dc 16.8V.

Swii has a dedicated charger, please use its standard charger. If you use other charger sit may cause damage to the battery.

Bearings are not easily damaged under normal use. Please maintain it after every use.Especially after use in sea water, immerse the Swii in fresh water and clean it to prevent bearing damage by seawater crystals or gravel impurities.

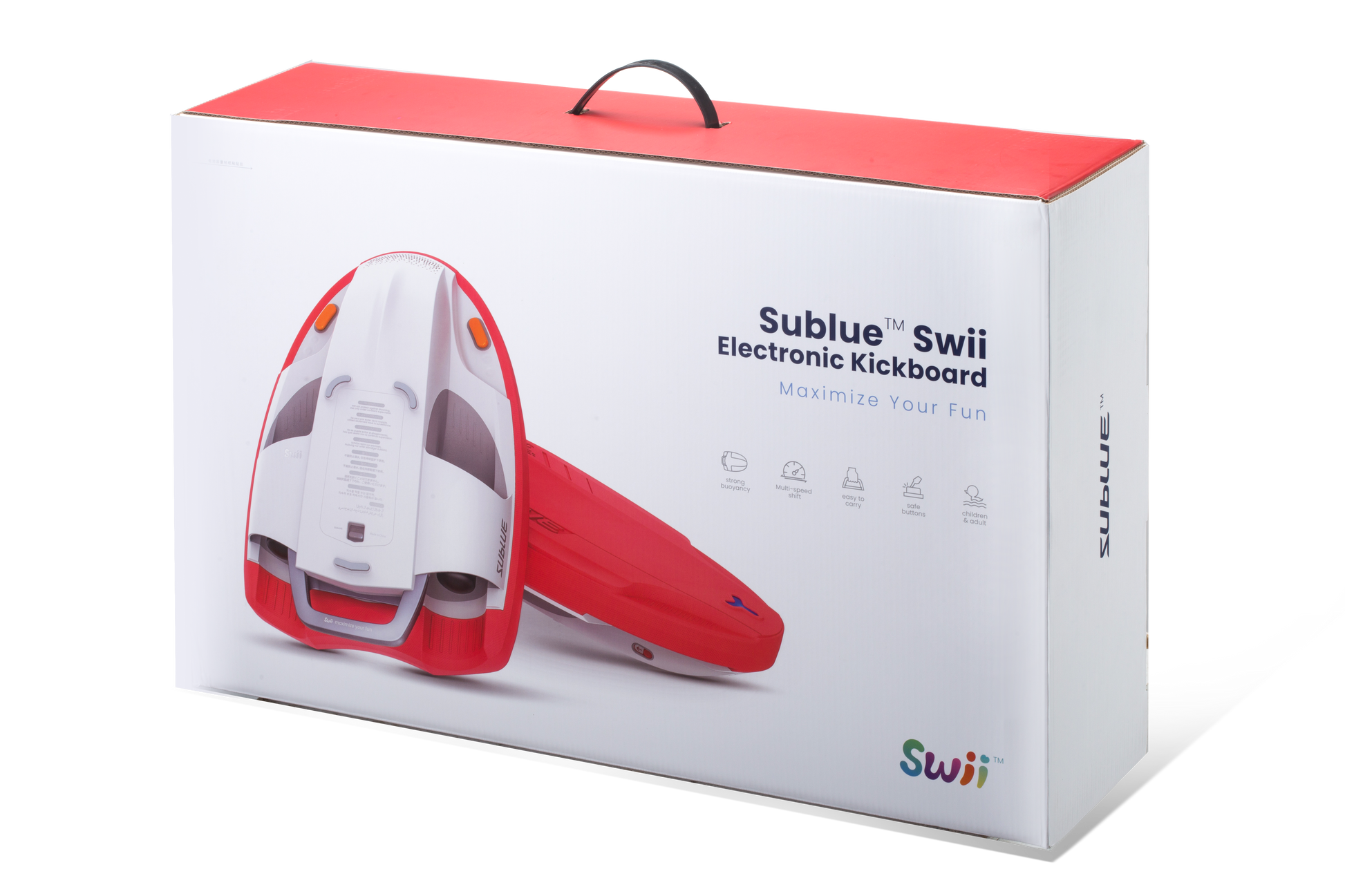

The outer packing box is 67.8*44.5*19. 2cm.And the weight is 6.5KG.

No, Swii has a dedicated charger, please use the standard charger. lf you use others, it may cause damage to the battery.

The outer packing box is 67.8*44.5*19.2cm. And the weight is 8.15kg.

NO.

The depth of Swii is 0-lm, but the sealing can reach to 5m.

Swii has a special under water sealing process and will not leak electricity.

It can be use in open water area, such as swimming pools, etc.

The Swii host and battery should be stored separately. Please follow the guidelines below:

l.Please make sure the machine is stored in a well ventilated environment of 0℃c-50°c(Battery should follow the battery storage requiments).

2. Avoid direct sunlight.

3. Avoidpoor ventilation or humidity above 65%.

4.Keep away from high temperature, fire and children touchable position.

5. Keep away from equipment that may generate strong magnetic fields.

6.To prevent the machine from being moldy, please take out it once a month and run for 10 seconds.

The weight of the machine is 5kg (battery included), which is convenient to be taken on plane. Since the battery capacity is 158wh, according to the rules of lCAO and related airports, you need to contact the airline in advance to get permission, each person can take a maximum of two batteries on board and cannot be checked (Faulty battery such as leaked or damaged cannot be transported).

After Swii used in sea water or fresh water, please clean it as the following steps within 30min:

1.Fully immerse the Swii in a container filled with water for 20 minutes. Note:①Do not add laundry detergent, abluent, etc. in the water.②When Swii is immersed in water, some bubbles will be discharged from the body holes. This is not a malfunction.

2. Press the switch with both hands to make Swii run in the semi-air for 2 seconds, repeated 5 times, or soak in clear water for 20 minutes. Note:①To prevent body splashing during operation, push the propeller nozzle towards the bottom of the container. ②The Swii has great thrust in water, please lift the machine slightly out of the water for better clean and control.

3.Shake and clean the body of Swii to remove the objects attached on it.

4, Wipe the water off with a clean, soft cloth, ensuring the water around the body and battery wiped clean. Then takeout the battery, put it and body separately in a well-ventilated place. Do not use a hair dryer for drying.

Battery storage temperature: 0°c-40°c, storage humidity:60+25%RH, maintain the power about 30-50%, stored separately in well-ventilated place. Please charge it once every three months. Do not charge the battery below 0°C.

The battery type: lithium-ion battery. Rated capacity:10670mAh. Nominal voltage:14.8 V Charging voltage:16.8 v. Weight: about 1100g. Length:17mm. Width:58mm. Thickness:60mm.

You can purchase the spare battery by the SUBLUE official website or consulting your local dealer.
