FAQs
The using depth is 0-40m.
The weight of the machine body is 3400g,and the battery is 1100g.The standard battery is 158Wh.In accordance with lCA0 and the relevant airport regulations,please contact the airline in advance for consultation.lf you want to be more convenient,you can buy the 98Wh battery.Please take out the battery separately during security check and carry it with you.The battery can't be checked.Each person can carry up to two batteries on the plane(the faulty battery is not allowed to be carried if it leaks or breaks).
The battery duration depends on the using environment height and weight.Under normal circumstance.158Wh battery can be used up to 60mins.
The machine and battery should be stored separately.Please follow the instruction below:
1.Ensure the machine is stored in a well ventilated place with a temperature of 0-45°C and ahumidity of 65+20%。
2.Avoid direct sunlight;。
3.keep away from high tempreture.fire andchildren touchable position.
4.Keep away from equipment that may generate strong magnetic fields.
5.To avoid the machine being rusted due to enviorment change,please take out the machine and operate 10mins every month.
After using Navbow+ in sea or fresh water,clean it within 30min following the steps below:
1.lmmerse the machine with battery in a container filled with clean water for 20minutes.
Note:
①Do not add any chemical cleaning products such as laundry detergentor detergent in the water.
②When immersed in water,some bubbles are expelled from the holes of machine,it is not a malfunction. 2.For deer cleaning,please put Navbow+ in acontainer filled with water Click"Selfclean" on the mobile APp and it will automatically turrto clean. Note:
①To prevent splashing on your body during operation,let the thruster outlet to the bottom of the container. ②Navbow+ has a high thrust in the water.Slightly raising itto the surface will be better for control.
3.Shake and clean Navbow+'s body to remove all foreign objects attached to it.
4.Wipe the water with a clean soft dry cloth,make sure the machine body and battery are clear.Then take out the battery, dry them in a well ventilated place.Do not use the hair dryer.
FREE is a low-speed gear with 1.0m/. SPORT is a medium-speed gear with 1.5m/s. TURBO is a high-speed gear with 2.0m/s.
1.When Navbow+ is not in use,take out the battery and store it separately.Battery storage temperature:25 +5°C humidity:65+25%RH.Maintain the power about 30-60%.Store it separately in a cool,dry and ventilated place.
2.Avoid direct sunlight and high temperature.The overheat battery may cause an explosion.
3.lf you store it for a long time,please check the battery capacity at least every 6 months,and charge it to 60%.
4.Please do not charge the battery below 0℃.
5.Keep low power during transportation discharge the power to 30% before transportation.
The battery:lithium-ion battery,.Rated capacity:10670mAh.Nominal voltage:14.8v.Charging voltage:16.8v.Weight: approximately 1100g.Length:17lmm.Width:58mm Thickness:60mm
No,it is abnormal,the battery electrode should be free of it with a dry cloth and try to apply vaseline on the battery contacts.lf the corrosion is serious, please contact SUBLUE or authorized after-sales service center for support.
The battery will always be in a deficient state due to not charged for a long time.When it is recharged, it may expand and deform.Long-term charging may also cause the battery drum to deform.Please store the battery separately in a cool ventilated place with a temperature of 25+5°c, a humidity of 65+25%RH.If you store it for a long time, please check the battery capacity at least every 6 months and charge it to 60%.
You can contact SUBLUE or local dealer to purchase the spare battery.
The battery is a lithium-ion battery and will be heating under normal condition.
The battery is a lithium-ion battery and will be heating under normal condition.
The battery is a lithium battery.In low temperature,the capacity will be sharply reduced.Please use it in 0°C-35°C.Do not charge or use it below O°C.
The battery is a lithium battery.In low temperature,the capacity will be sharply reduced.Please use it in 0°C-35°C.Do not charge or use it below O°C.
Please use Navbow+ in open water area.lt is forbidden to use it in rivers, ponds or poor environment.Please pay attention not to let clothes, algae, ropes, shark nets, shells or other debris into the propeller.
Please contact SUBLUE or authorized after-sales service center for support.
No.First,Navbow+ is battery contact sealing.Second,thecircuit is low-voltage design and has circuit protection.This product has been tested and certified.You can use it safely.
Firstly confirm there is no foreign object in the propeller.The thrust is vary from high andlow speed gear.Please choose the proper gear.The thrust is also affected by the using way,environment, user's height and weight.
If there is noise when operating in air, check the propellers for foreign objects.Make sure to clean and maintain the machine after each use following instructions.lf the noise is too loud, please contact SUBLUE or authorized after-sales service center for support.
Please check if there are any foreign objects or blades in the propeller,or the front and rear protective covers are damaged,etc.Or you can contact SUBLUE or authorized after-salesservice center for support.
Please take out the battery,and open the front end cover Take out the propeller to clean the windings.For details please contact SUBLUE or authorized after-sales service center for support.
Install the battery,and pushes the multi-function switch for ls.The OLED display lights up "SUBLUE"logo, then press the left and right buttons at the same time with both hands to go ahead.
Navbow+ is equipped with a dedicated charger.Please be sure to use the standard chargeror optional fast charger.We will not be responsible for any damage of battery caused by other chargers.
The battery is a lithium-ion battery and will be heating under normal condition.
Yes, it is.
Navbow+ is positive buoyancy in water and will not be sink or lost.However,if external deviceis added as well as influence water flow,it may become negative buoyancy and will sink oreven lose.lt is suggested that please wear anti-lost rope.
Turn on the multi-function switch, the OLED screen will show the left power.
Yes.Turn on the multi-function switch and press the start button to flexibly rotate the wristand arm.For safety, please use it in shallow water and equip with life-saving equipment.People under age of 16 years should not use it.
The recommended temperature is 0-35°C.Do not use it above 40°C.
No.But we have reserved the interface for you, you can install a sports camera such as Gopro.

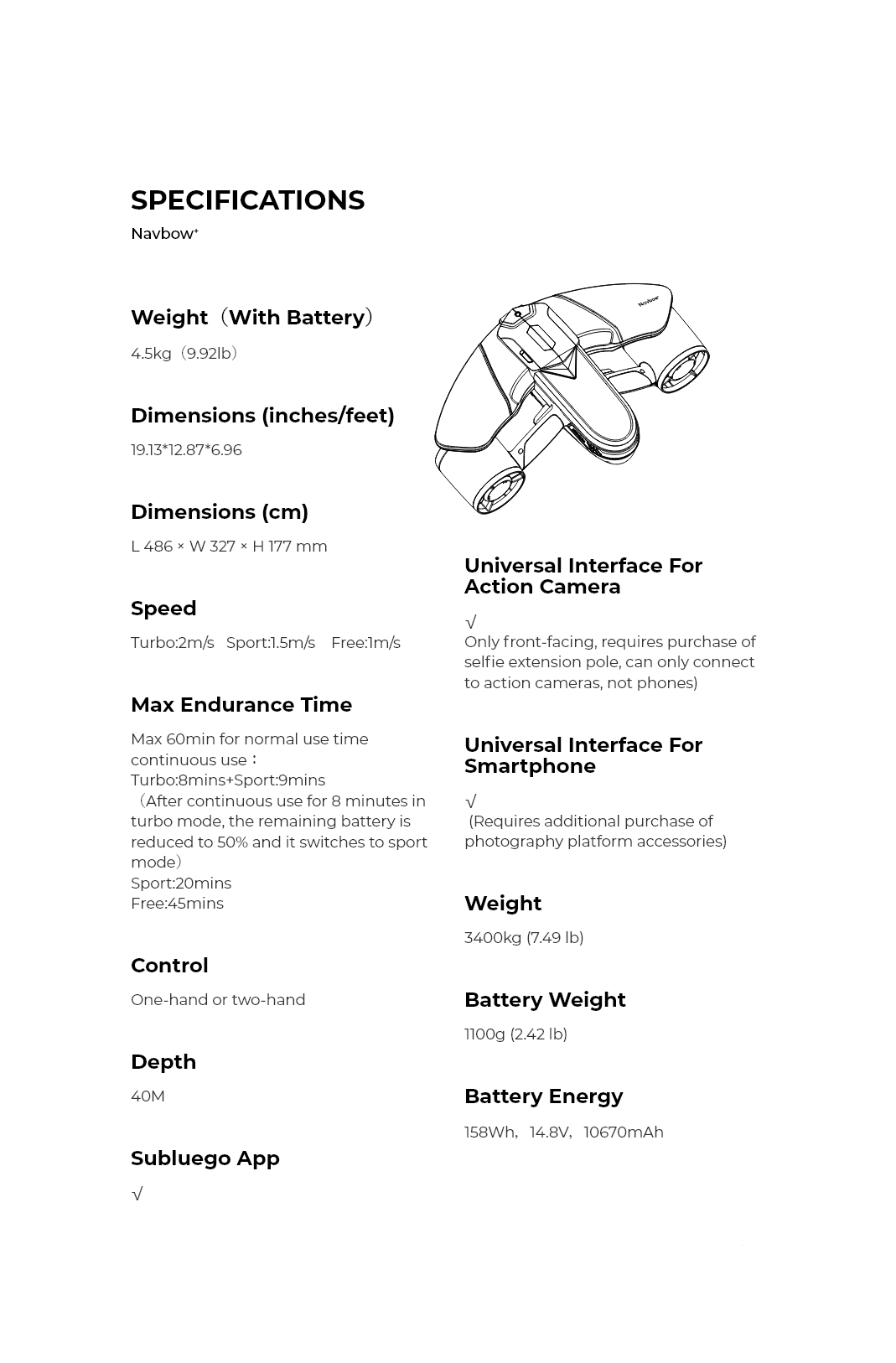

486mmx327mmx177mm.

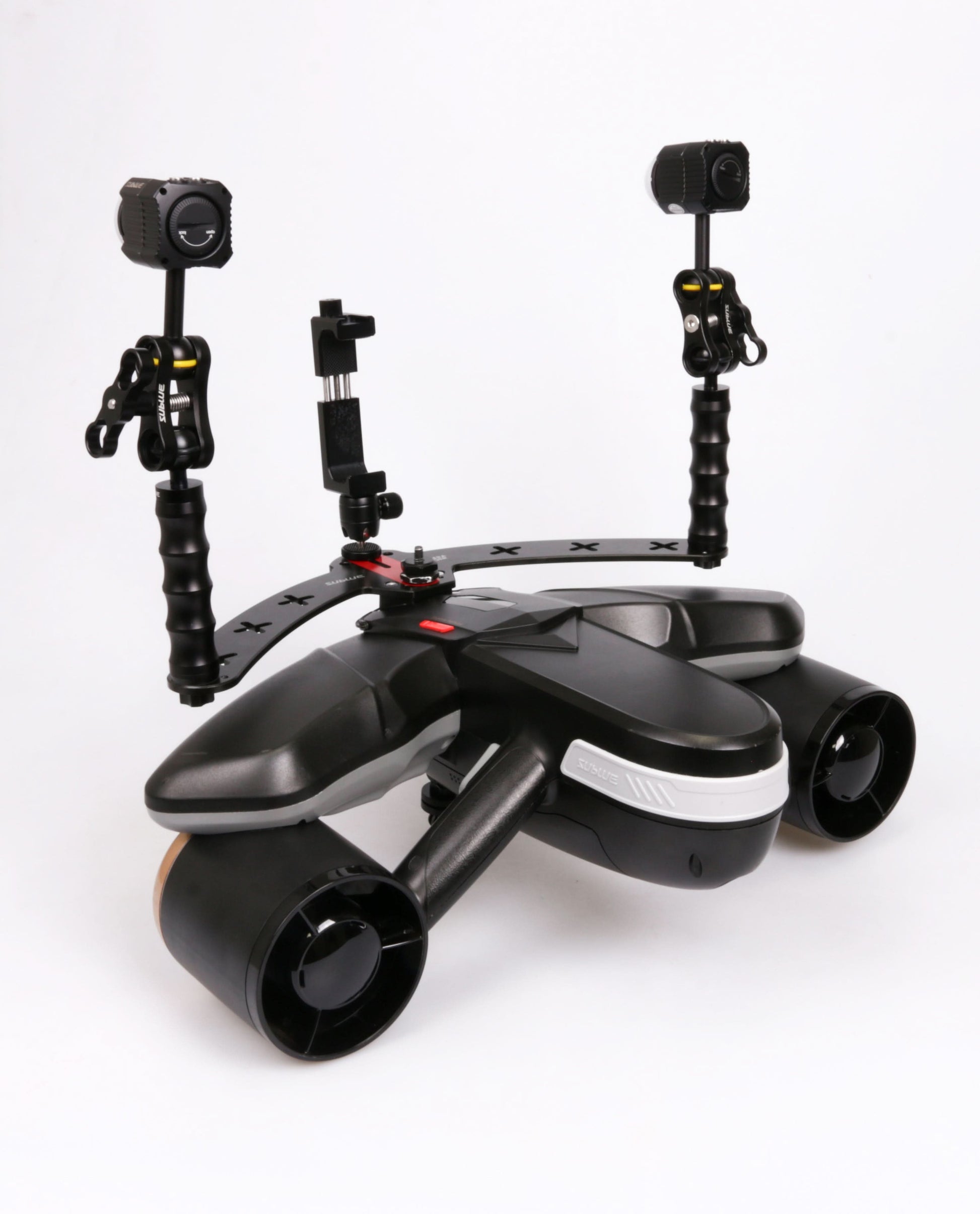

There is a standard Gopro support under the front of Navbowt,and a 1/4"underwater mounting hole on the top, for mounting of devices.
Yes.However,the micro-positive buoyancy is only in the case of sea/fresh water and user not adding negative buoyancy properties (such as weight,underwater camera,lighting,etc.).The water environment and extra mount will lead to buoyancy changing.
Push forward the multi-function switch for ls.Then the OLED display lights up the"SUBLUE"logo and enters the main interface.
Push forward the multi-function switch for 3s.The OLED display turned off shows the machine.
There are three speed,"FREE","SPORT","TURBO"You can switch between three speeds.when the power is lower than 50%,please just switch between "FREE"and "SPORT".
There are two ways.
l.Push the multi-function switch for 0.5s and then release it.
2.Press the start button at the same time with both hands to keep the device running,release the right start button and click twice fastly (two time intervals of about 0.45s).This function is only valid in the two-hand mode.
When the power is less than two bars,the power icon on the screen will flash rapidly withvibrating three times.when the power is less than one bars,the power icon on the screen will flash rapidly with vibrating six times for the first time alarm.
The buoyancy of Navbow+will vary with changes in water environment. lf you need to increase negative buovancy and adjust the equipment to the optimal state, you can use counterweight columns to achieve the desired effect.
First install a counterweight (if only one, place it in the middle hole),then completely sinkthe machine in the water and fully exhaust the air, check whether the buoyancy state is up to expectation.lf not, continue to increase the counterweight.Adjust three times until reaching your expection.
Yes,double-click the left start button twice when it is turned on and not running.One-handed operation requires additional accessories.The accessory needs to be purchased separately from SUBLUE.
Install D transfer buckle before launching,Connectone-handed lanyard*Connect the diving suit waist loop→Adjust to proper length according to arm length→Start running with both hands after launching,then release one hand when the lanyard is straight and hand tension becomes smaller.
Use this text to answer questions in as much detail as possible for your customers.
When there is a fault, the OLED screen will display an alarm icon every 1 min.
3 mins.
In safety lock mode,the machine cannot opreate.The screen will diaplay the safety lockicon.lf you want to operate the machine again, please unlock it by APP.
