FAQs
Tini has 2 speed, with high speed 1.4m/s and low speed 1.1m/s. Dual-propeller operation is also optional to achieve a maximum speed of 2.0ms, Dual-propeller operation, low speed or running 1.6m/s, high speed running 2.0m/s)
ls it safe if the Tini battery compartment is flooded?
The actual measured noise of Tini is below 0.5 m-70 decibels. Hearing friendly.
Simple 3 steps, you can swim in the world ofwater: assembly -switch on-start use. Forsingle-boosting use, it can be used directly after assembling bracket, control handle and installing battery in order. TURNING ON/OFF AND SPEED SWITCHING INSTRUCTION [Turn on the power system] Toggle the power system switch for 3 seconds, until the two indicators of the power system are steady green. The power system is turned on. [Turn on the control handle] Press the left button of the control handle for 3 seconds, until the two indicators of the handle are steady green. The handle is turned on. [Start and stop] Press the start button of the control handle with forefinger to start and stop. Double-boosting mode.after the network operation, you can use it easily.
The working depth of Tini is 40m underwater.

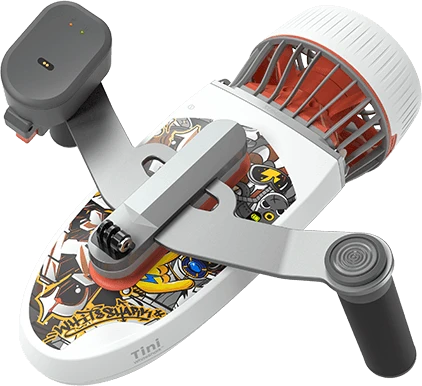

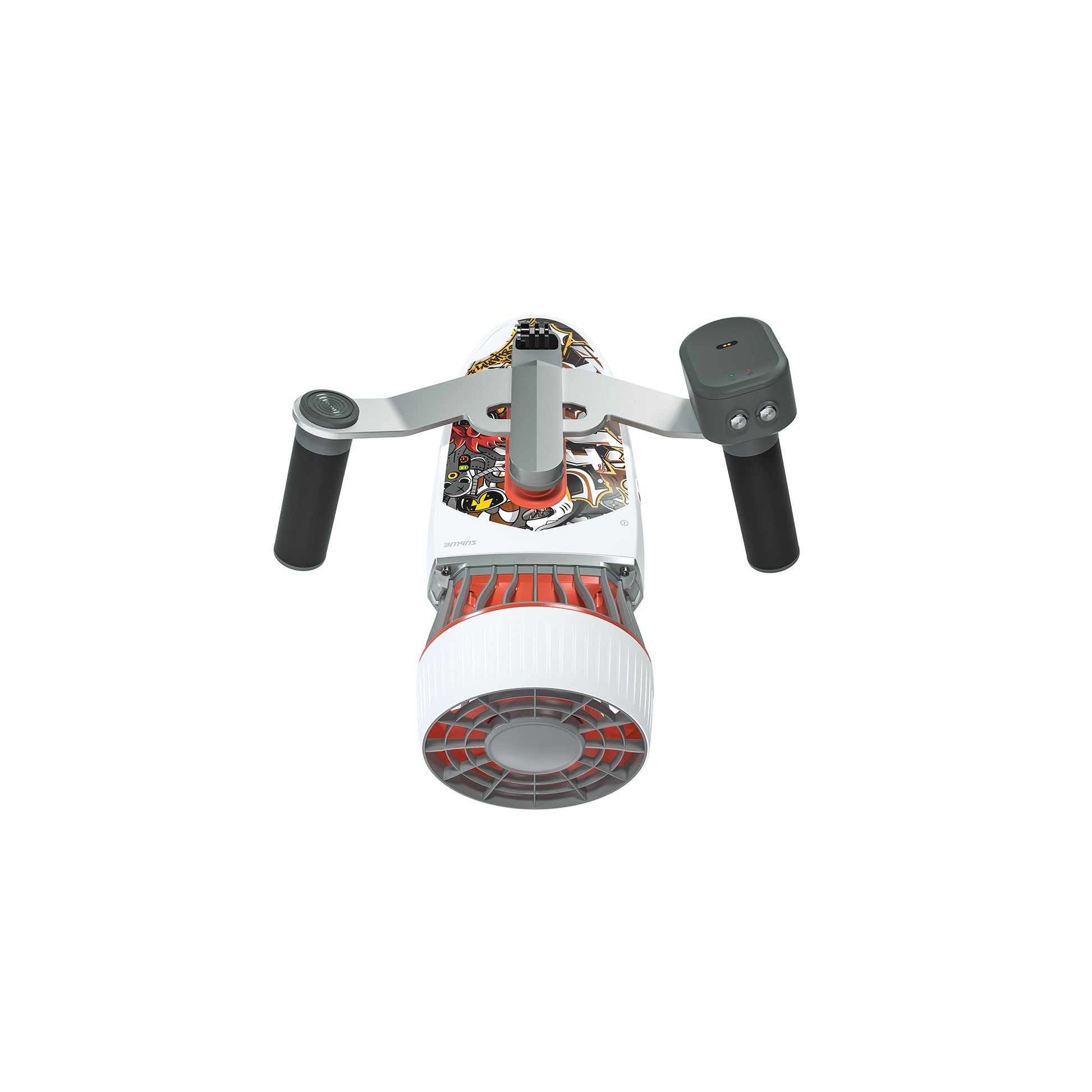

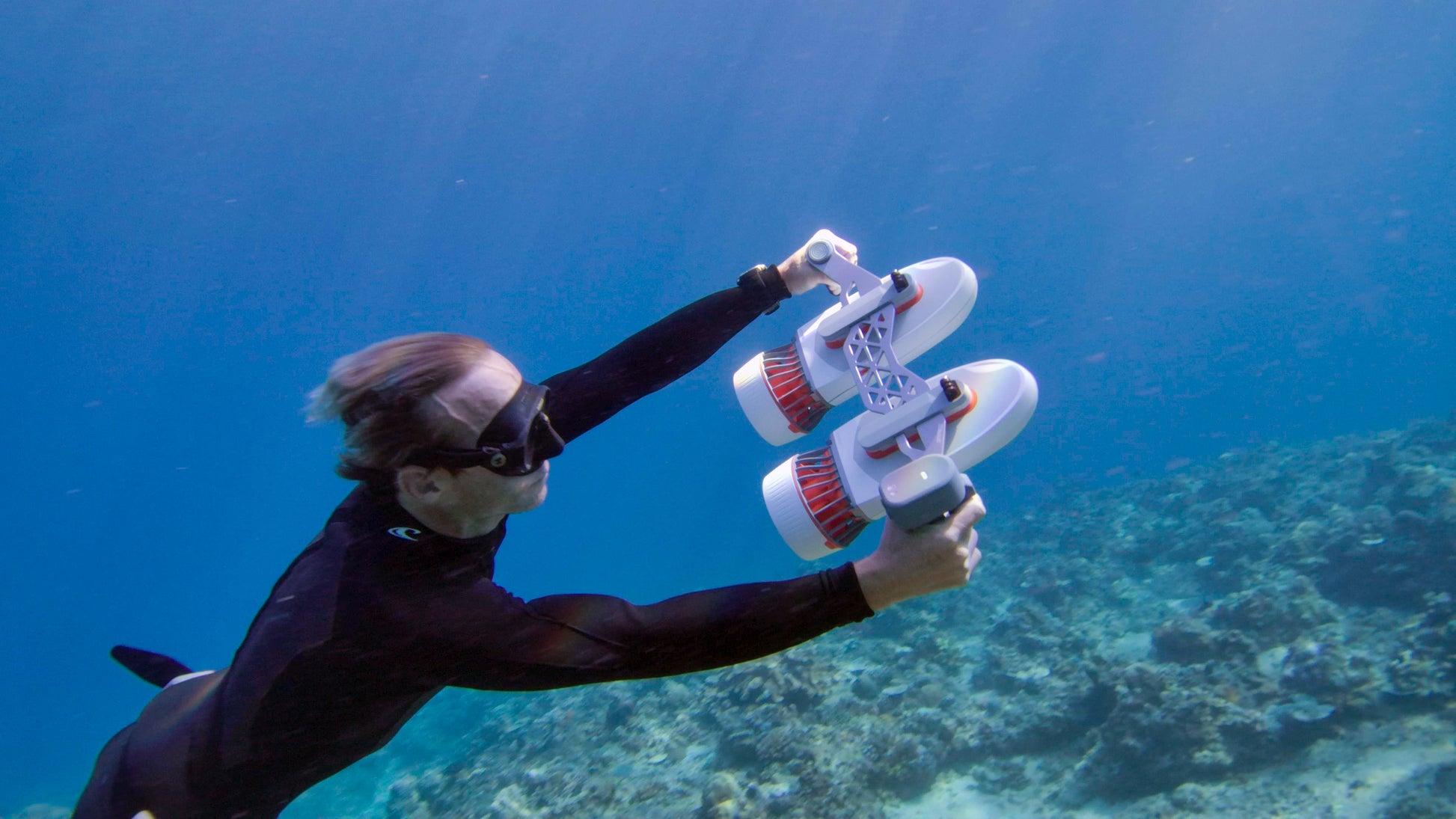

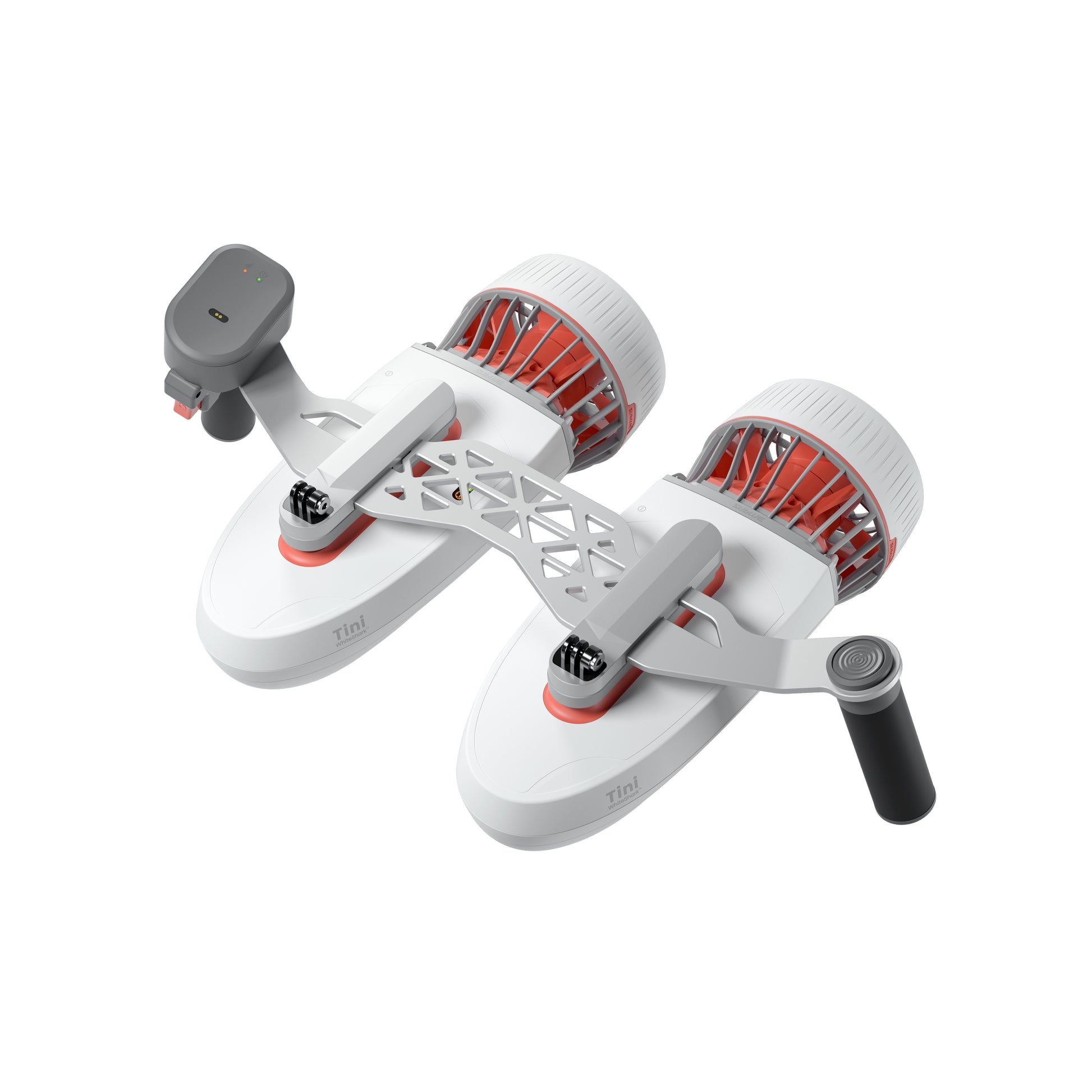

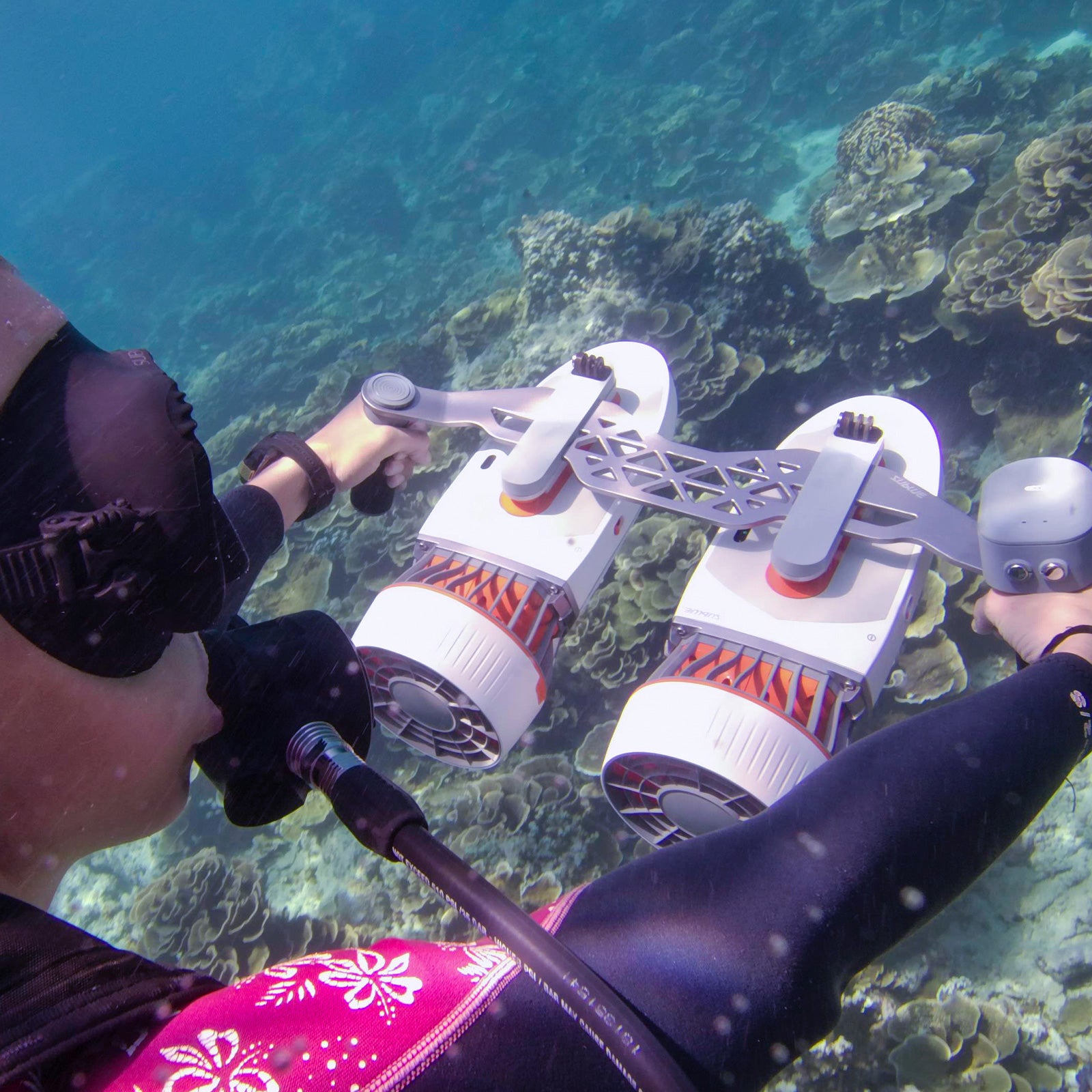

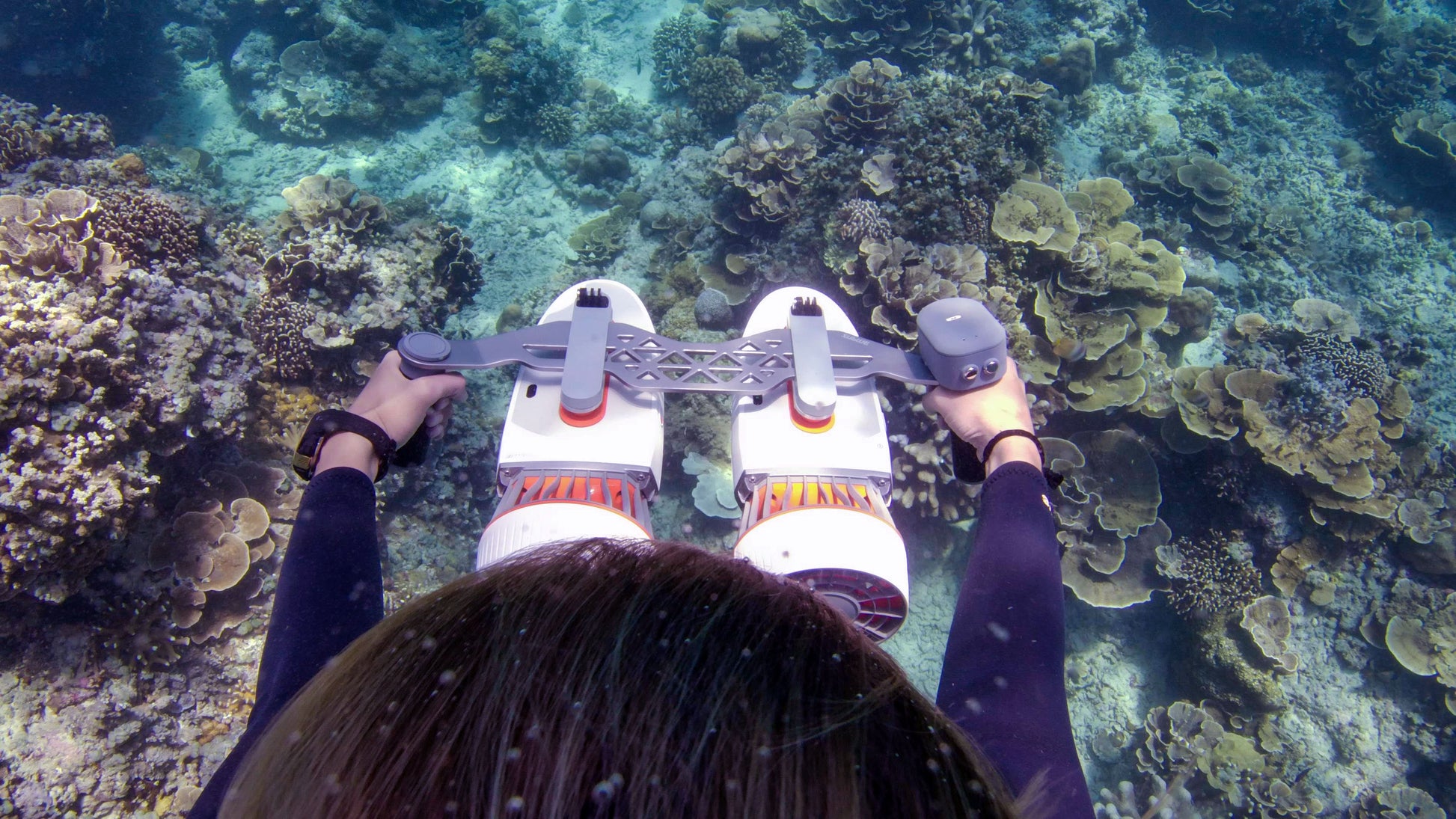

When you encounter the Tini DUAL-PROPELLER is not running, don't worry, it may be thatthe machine is not networked. Tini DUAL-PROPELLER NETWORKING and STARTING UPINSTRUCTlON Step1. Assemble the dual-propeller handle support and choose any control handle for assembly.
Step 2. Confirm that both power systems are in shutdown state.
Step 3.Toggle the switches of the two power systems for 6 seconds, until the indicators of the two bodies are flashing green. The two power systems enter networking state.
Step 4. Press the left button of the control handle for 3 seconds, until the two indicators of the handle are steady green.
Step 5. Press the right button of the control handle for 3 seconds, until the right indicator of the handle is flashing green. Control handle enters the network state. Step6. Both indicators of the two power systems turn steady green, no longer flashing. Networksuccessfully.
TiPS: * After completing the above networking operation, Tini can be useddirectly each time, no need to network again.* if the dual-propeller mode needs to be disassembled and used separately. After the unused control handle is networked with thepower system, it is ok. *Before use, please fully charge the lithium battery and the controlhandle. For more information, please contact Sublue official customer service support@sublue.com for help.

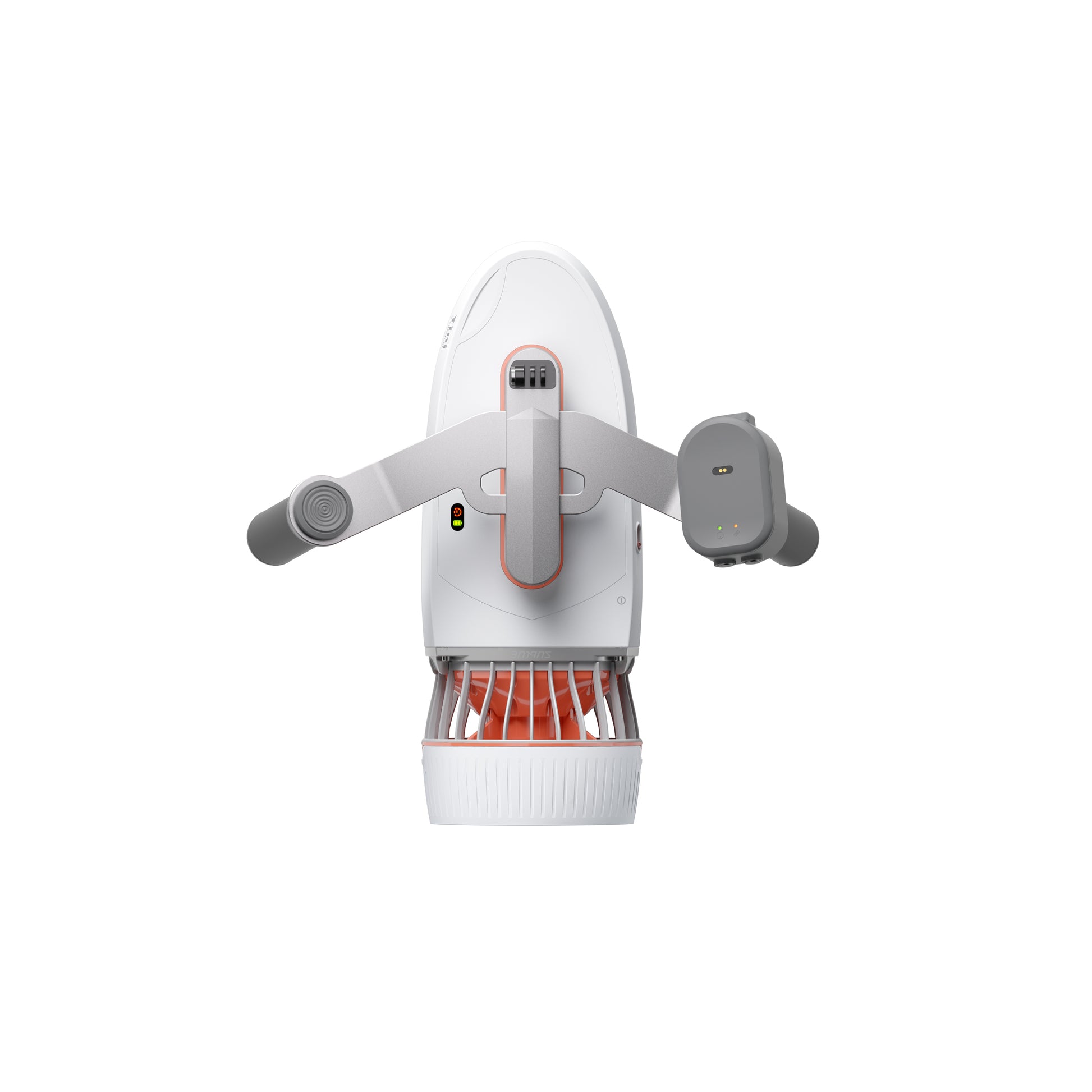

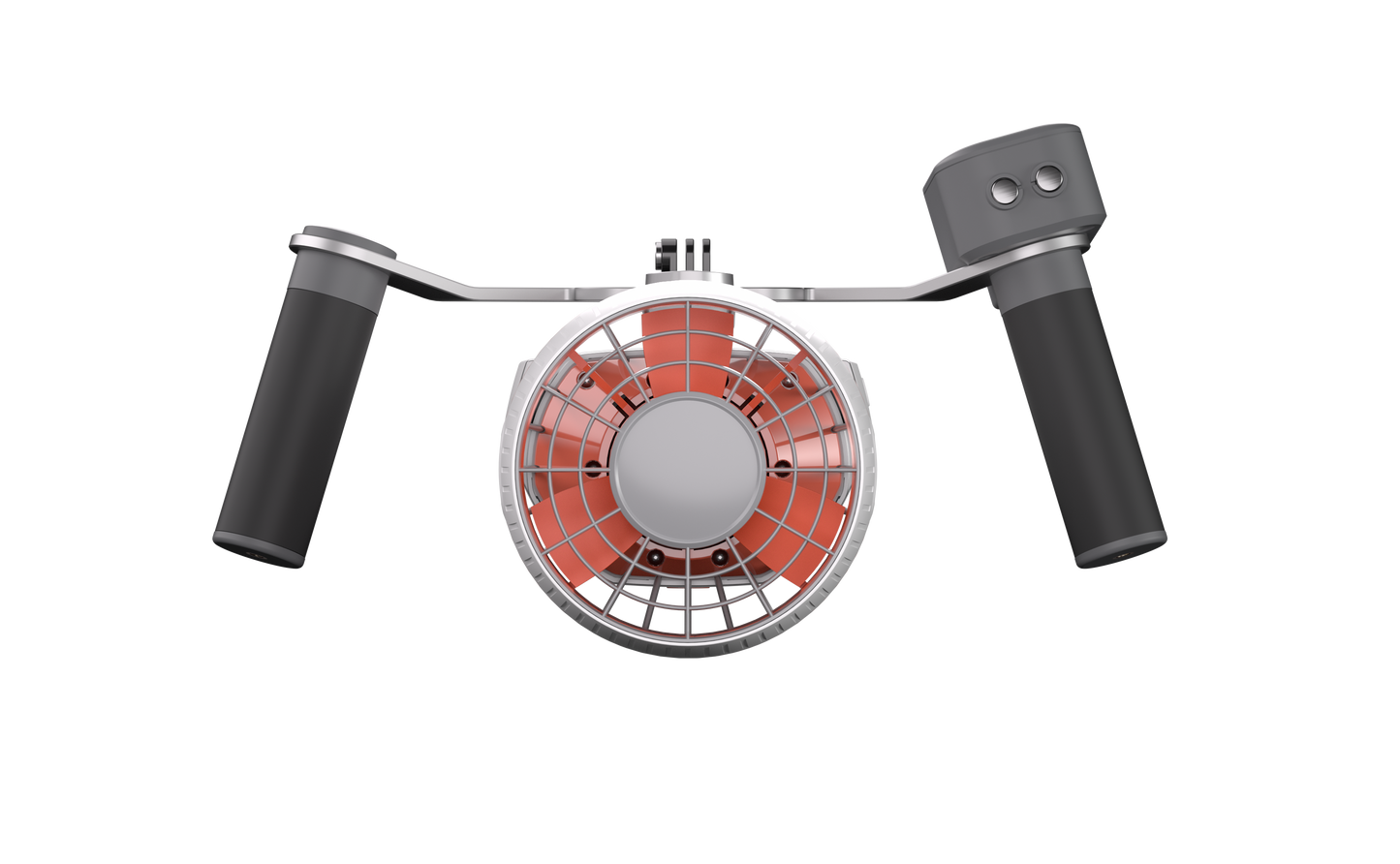

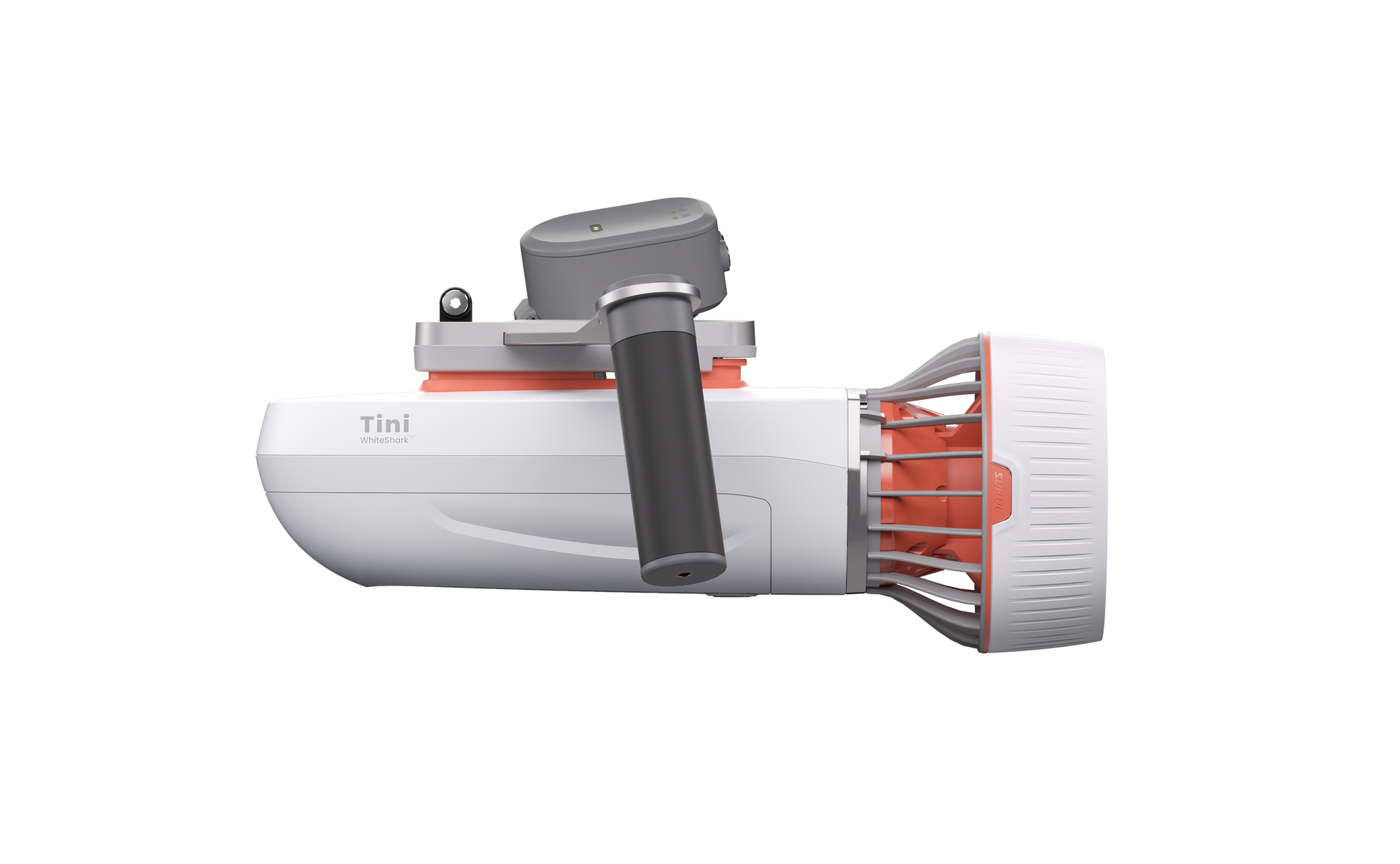

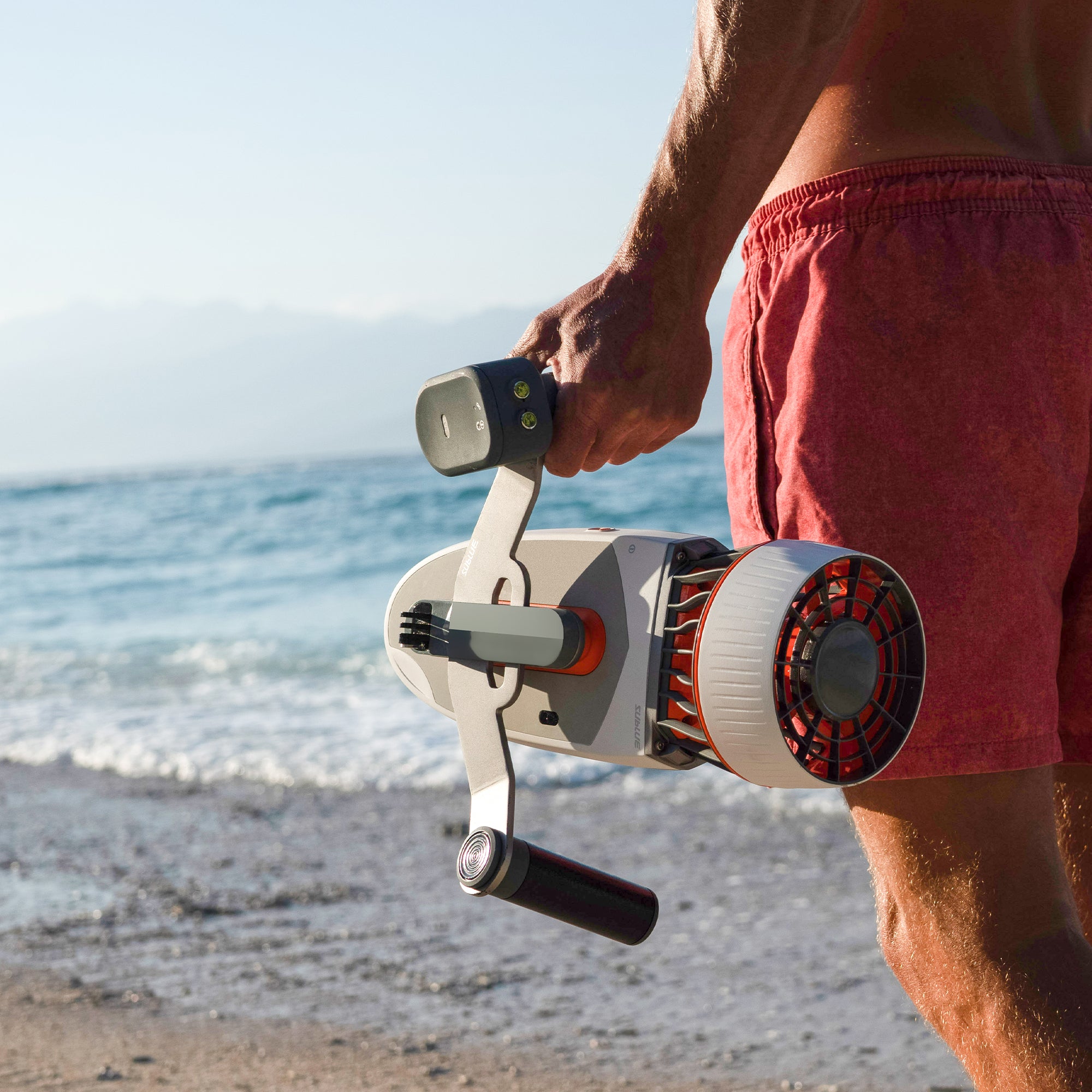

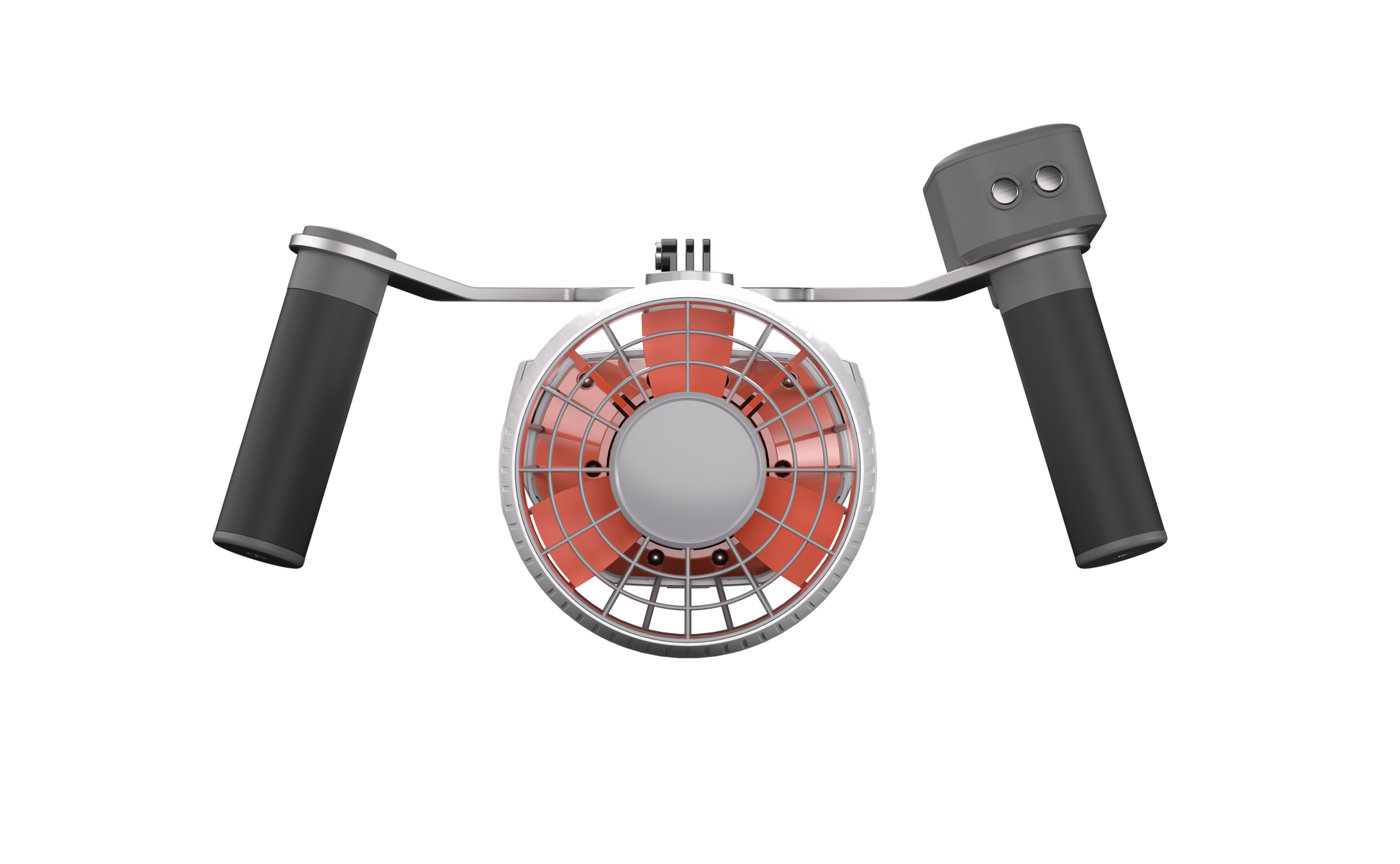

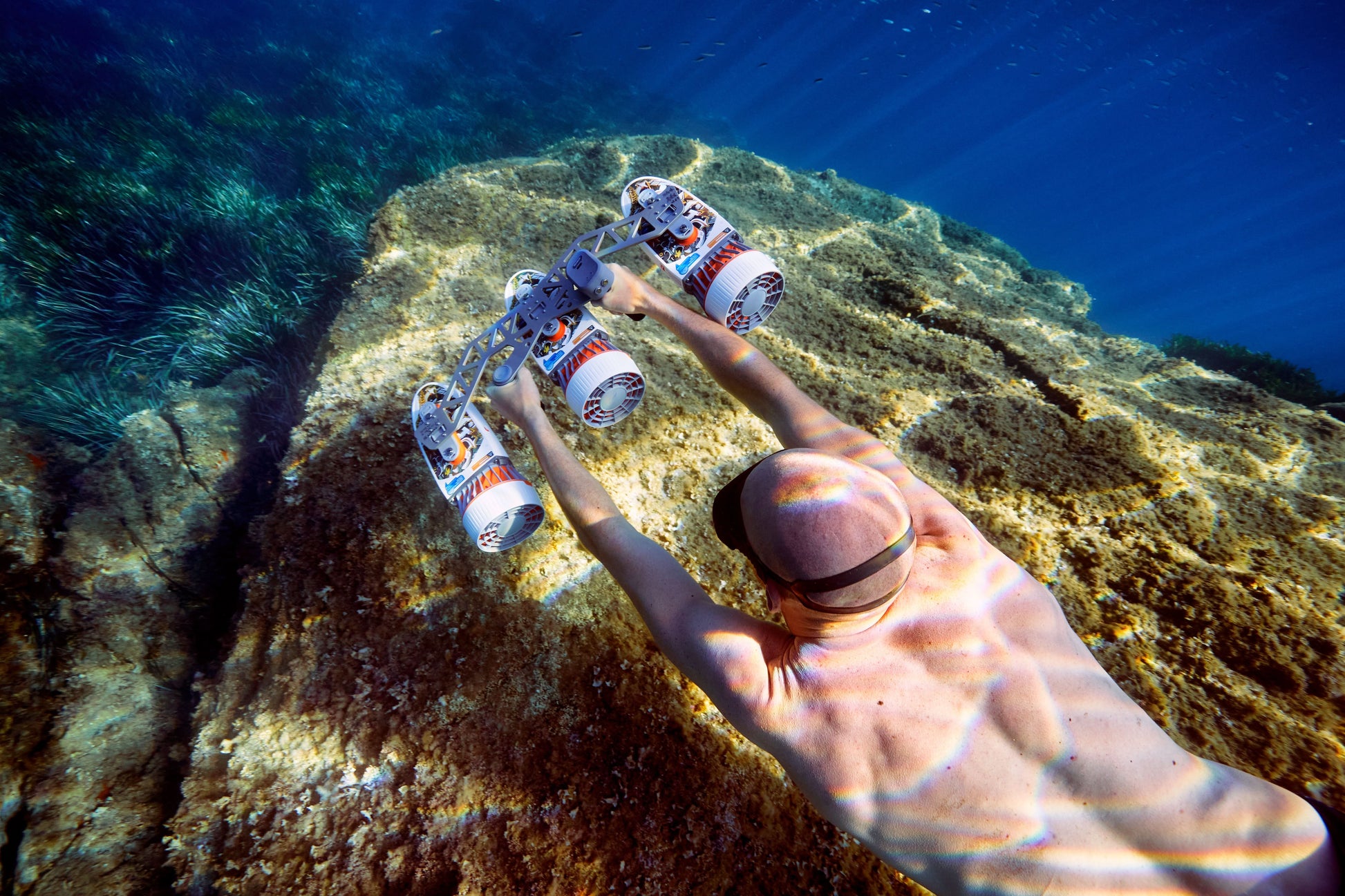

The motion system connects to the handle by the handle bracket; Wireless connectioncontrol. Tini motion system and control handle are started and operated independently. A control handle can be networked with up to 4 motion systems.
Tini motion system indicator lights are on the upper left side of the body. lt consists of two LED lights at the front and back. For details, please refer to the manual graphic index. 1)Two lights indicate the status of the motion system: All on (turn on) - All out (turn off) - All green flashing (in networking) - All red flashing (faulty) 2) Left headlight (LED A) indicating speed gear: Under operation, red (high speed gear) - green (low speed gear) 3) Left rear light (LEDB) indicates remaining power of motion system: Under operation, green (≥75%) - yellow(75%> power ≥50%)-red (50%> power >25%) - red flashing (power less than 25%) Tini indicator lights for the control handle, are in the upper side of the control handle. lt is composed of 2 LED lights. 1) 2 lights indicate the status of the control handle: All on (turn on)- All out (turn off) 2) Left light (LED A) indicating speed gear: Under operation, red (high speed gear) - green (low speed gear) The left light (LED A) also indicates the remaining power of the control handle Red flashing (in charging) - Green flashing (after charging) flashing under operation (power <30% warning) 3) Right light (LED B) indicates the networking status: Green flashing (networking).

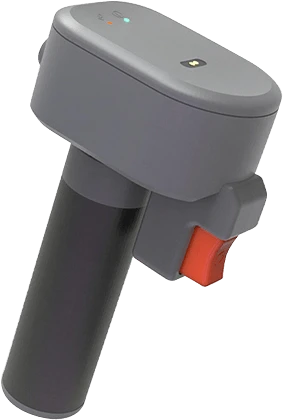

Tini control handle has a built-in polymer lithium battery with 1150mAh. The magnetic charging head is embedded in the control handle, with the magnetic charging cable of Sublue can realize fast charging. To charge the handle, the adapter output voltage should be 4.5V~5.5V,output current 1A~3A.
Actually, you can turn on one first, and then turn on the second one after use. Considering that under the double-boosting structure, one-sided operation will cause body deviation,which affects the use experience and even control stability and safety. Although the underwater running time is relatively extended, it is not recommended to use this way.
Within 60cm.

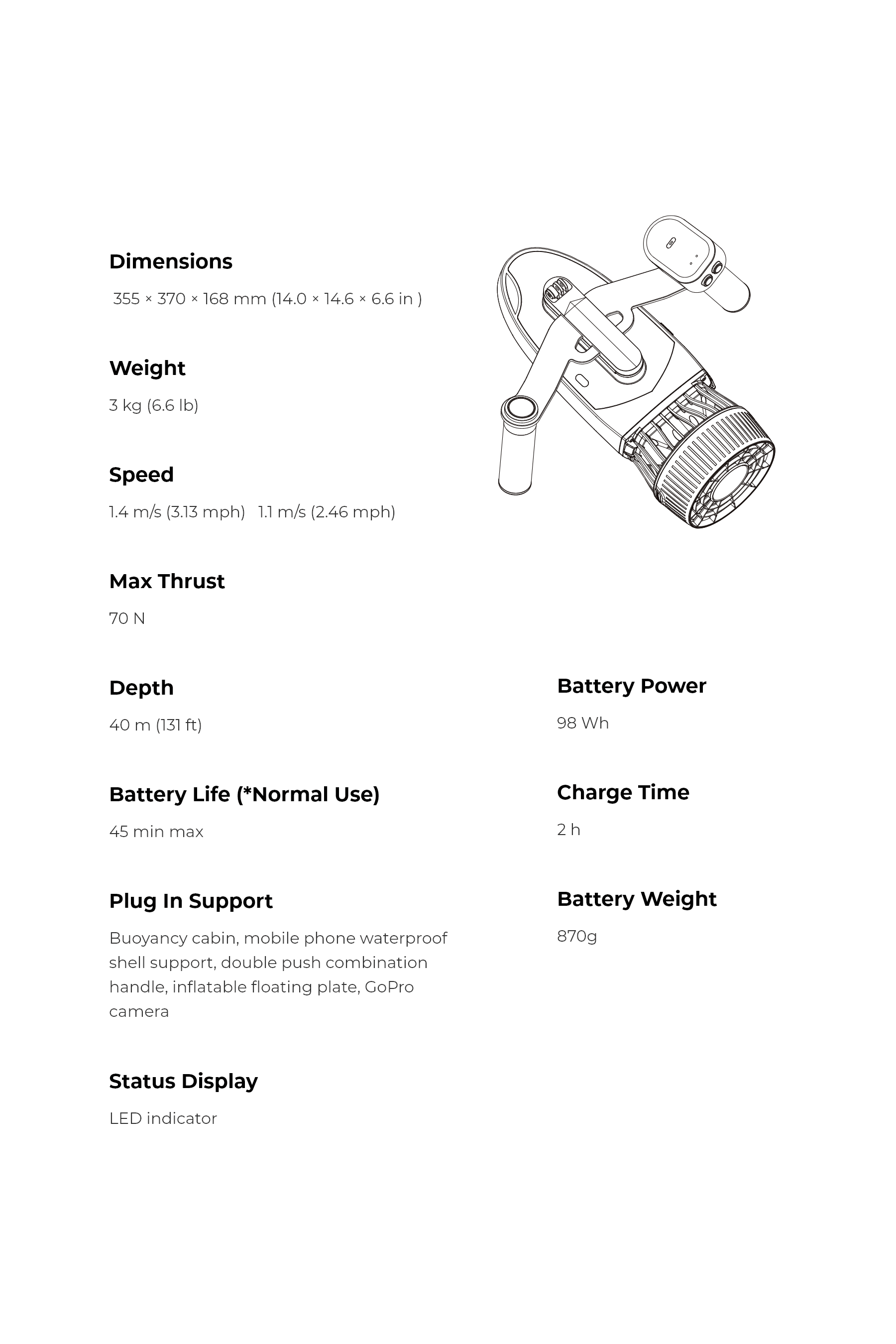

Dimensions: Length 355mm* width 135mm* height 135mm (Tini motion part) .
Weight:
3000g (including battery).
Brushless DC motor, 400W, maximum speed 2470RPM, motor class B continuous operation.

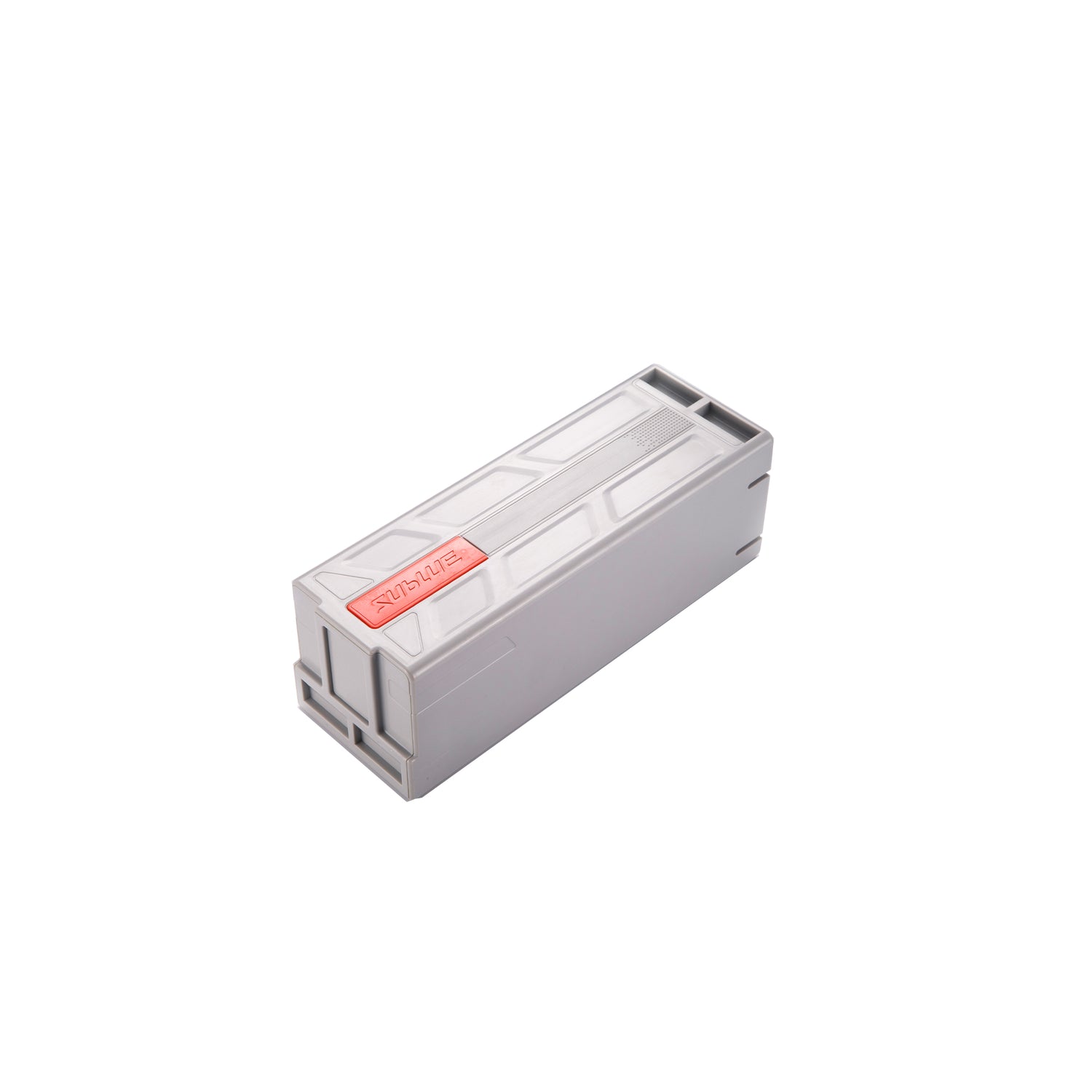

Tini standard battery is 98Wh, no declaration, more convenient to carry on board. Each person carries a maximum of two lithium batteries. Another optional 158WH battery,continuous operation of 1 h,achieve longer endurance.
Tini's battery and adapter are common to Sublue Swii and Navbow standard batteries and adapters.
There is an LED indicator in the upper right corner of the adapter, showing the charging status: "Green": the battery is fully charged; "Red": the battery is charging.
Capacity: 6600 mAh.
Weight: 870g (98Wh).
Tini power system with standard battery 98wh: The usual use time is up to 45mins(Running in high speed continuously for 20mins and low speed for 35mins); Tini powersystem with optional battery 158wh: The usual use time is up to 75mins (Running in high speed continuously for 32mins and low speed for 55mins) The usual use time of control handle is up to 150mins (Continuous running time 100mins).
The charging time of 98wh lithium battery is about 2 hours.

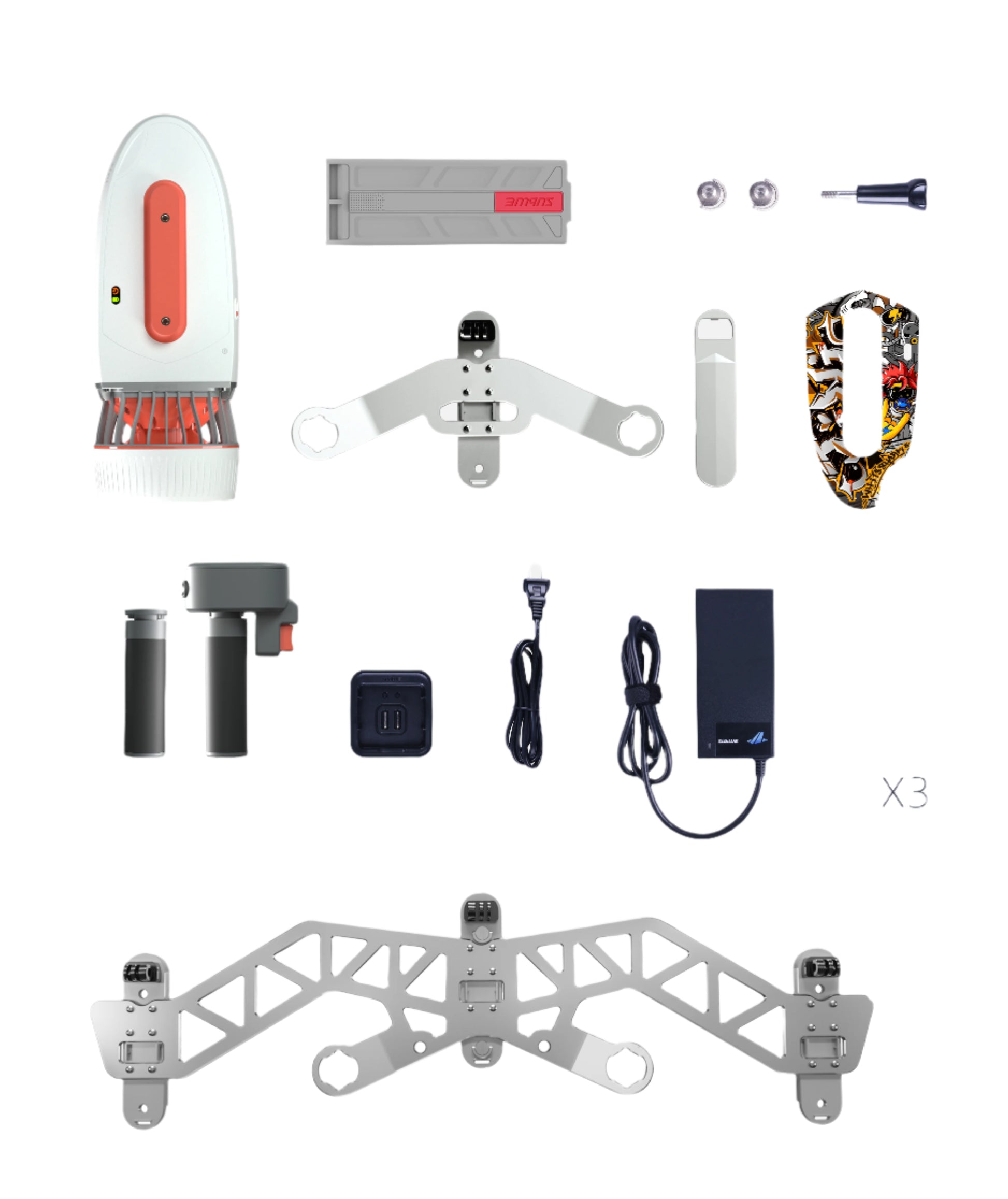

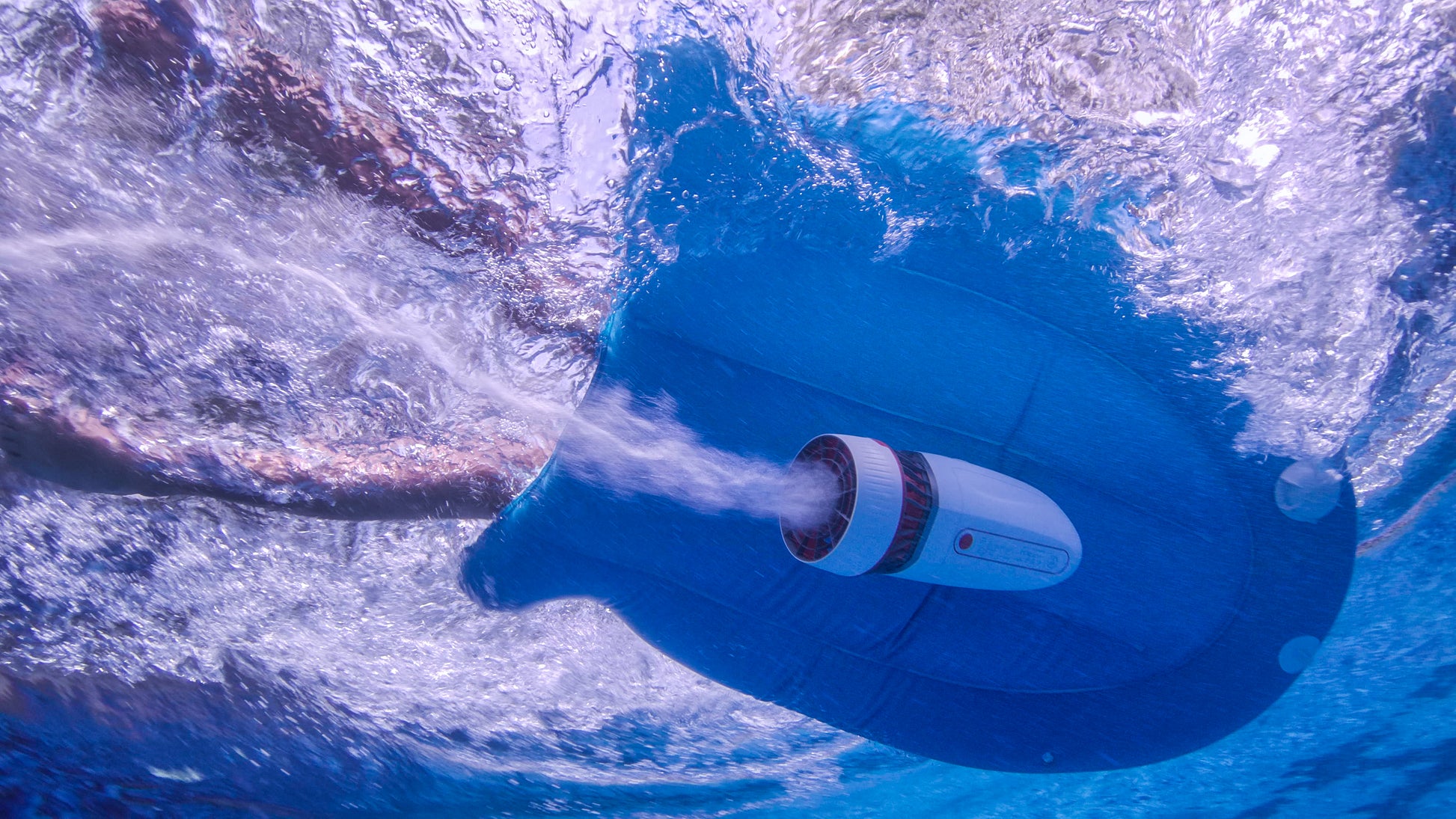

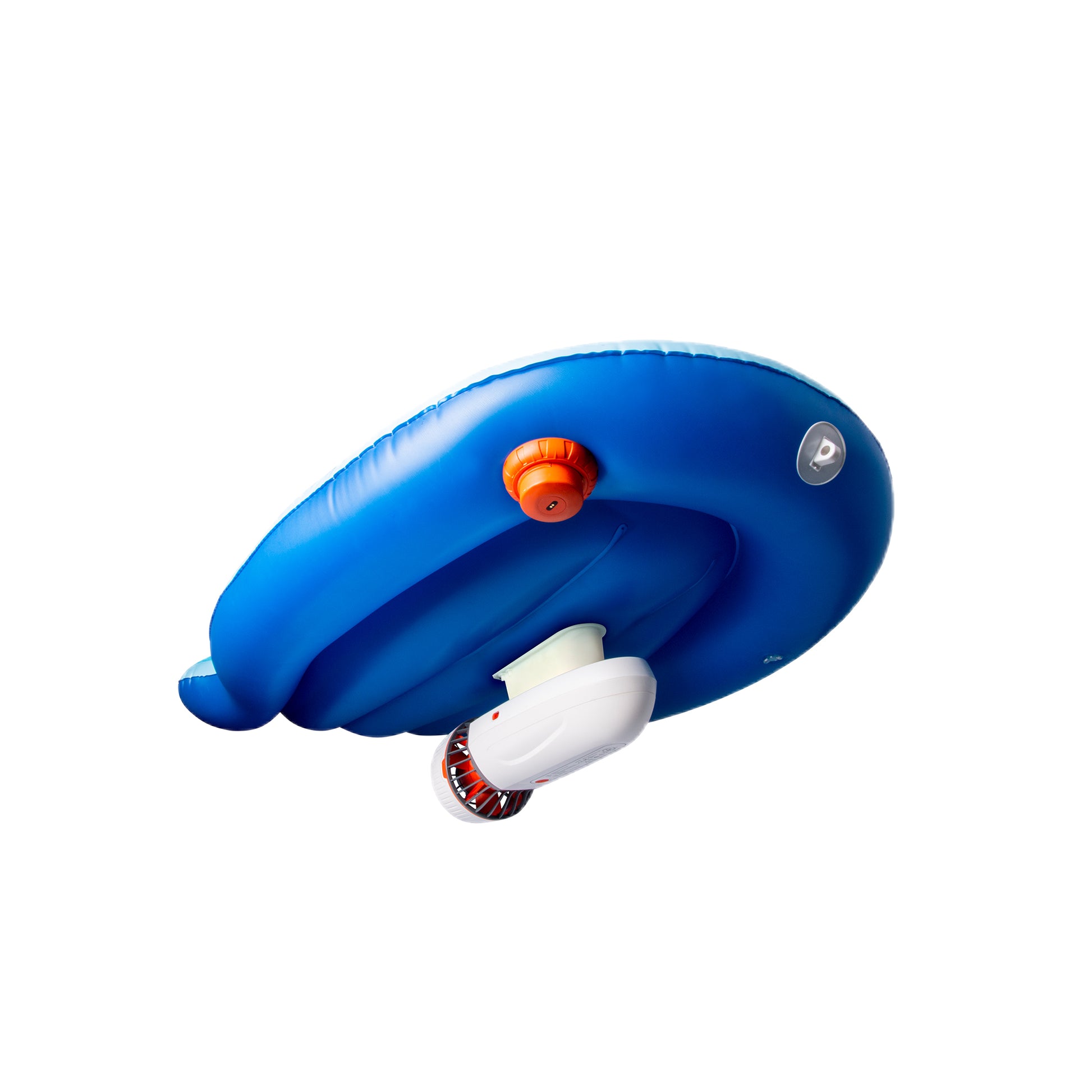

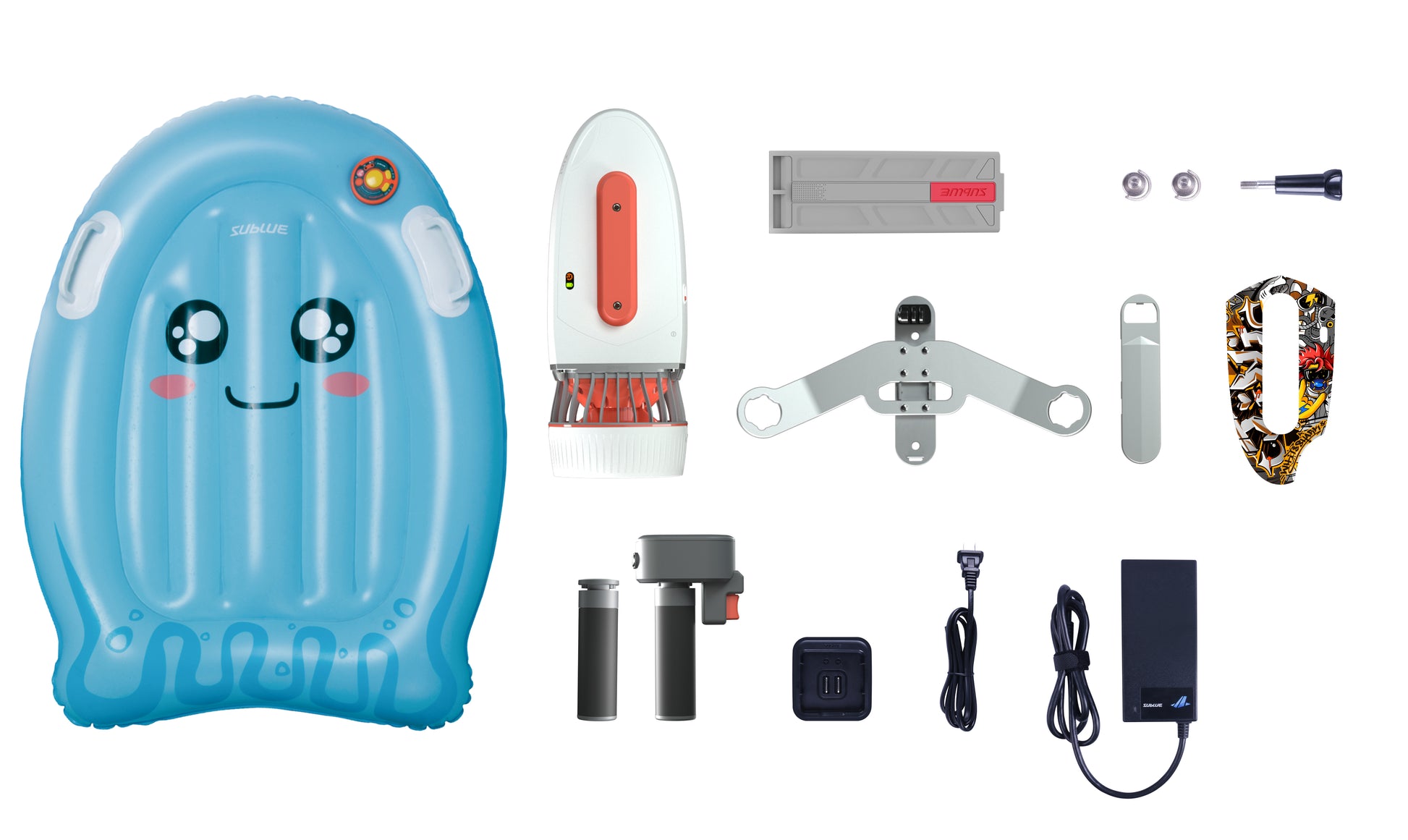

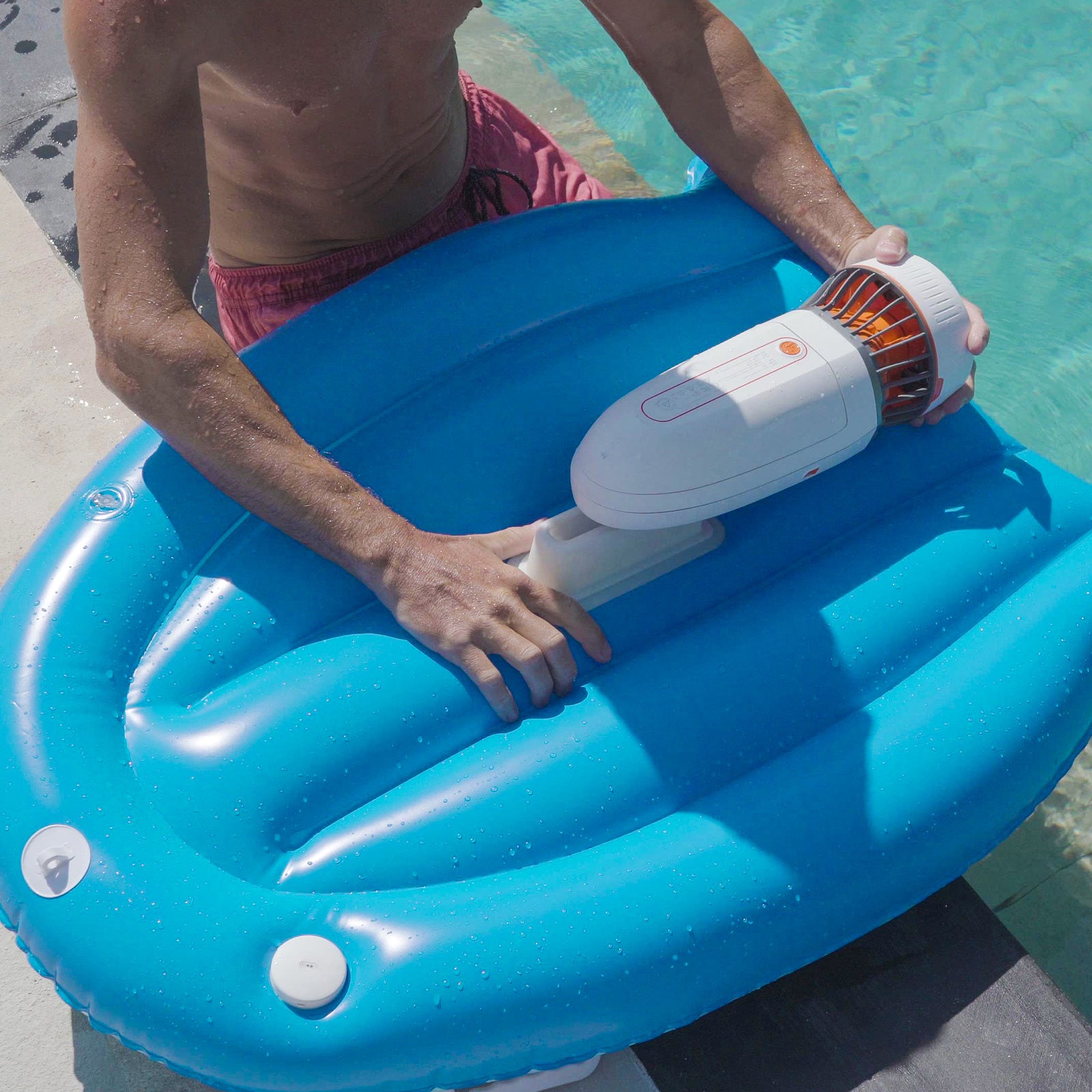

Now, Sublue has developed accessories such as floater (including phone waterproof caseholder), inflatable kickboard (large buoyancy,simple installation, double propeller model(greater thrust and sailing speed), one-hand operation (such as with diving across strap)the large capacity battery, colorful stickers and other accessories. For more suggestions,please contact us at support@sublue.com. Thank you.

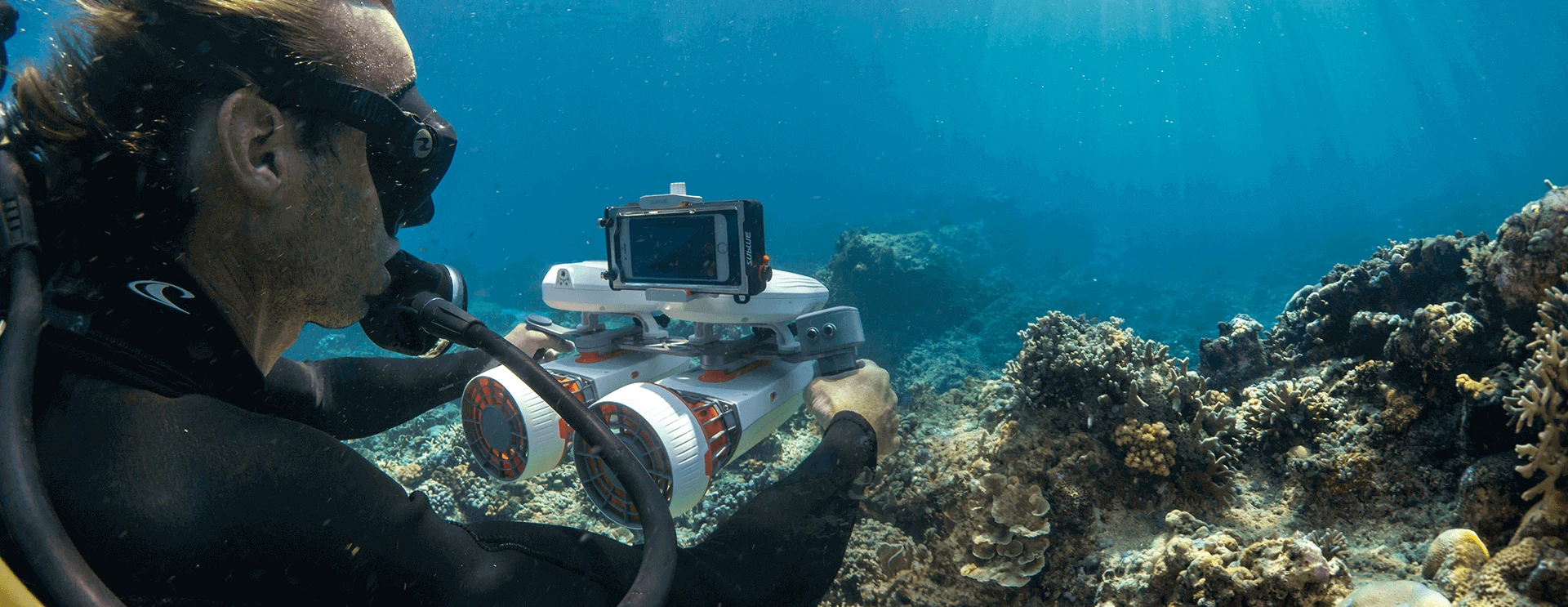

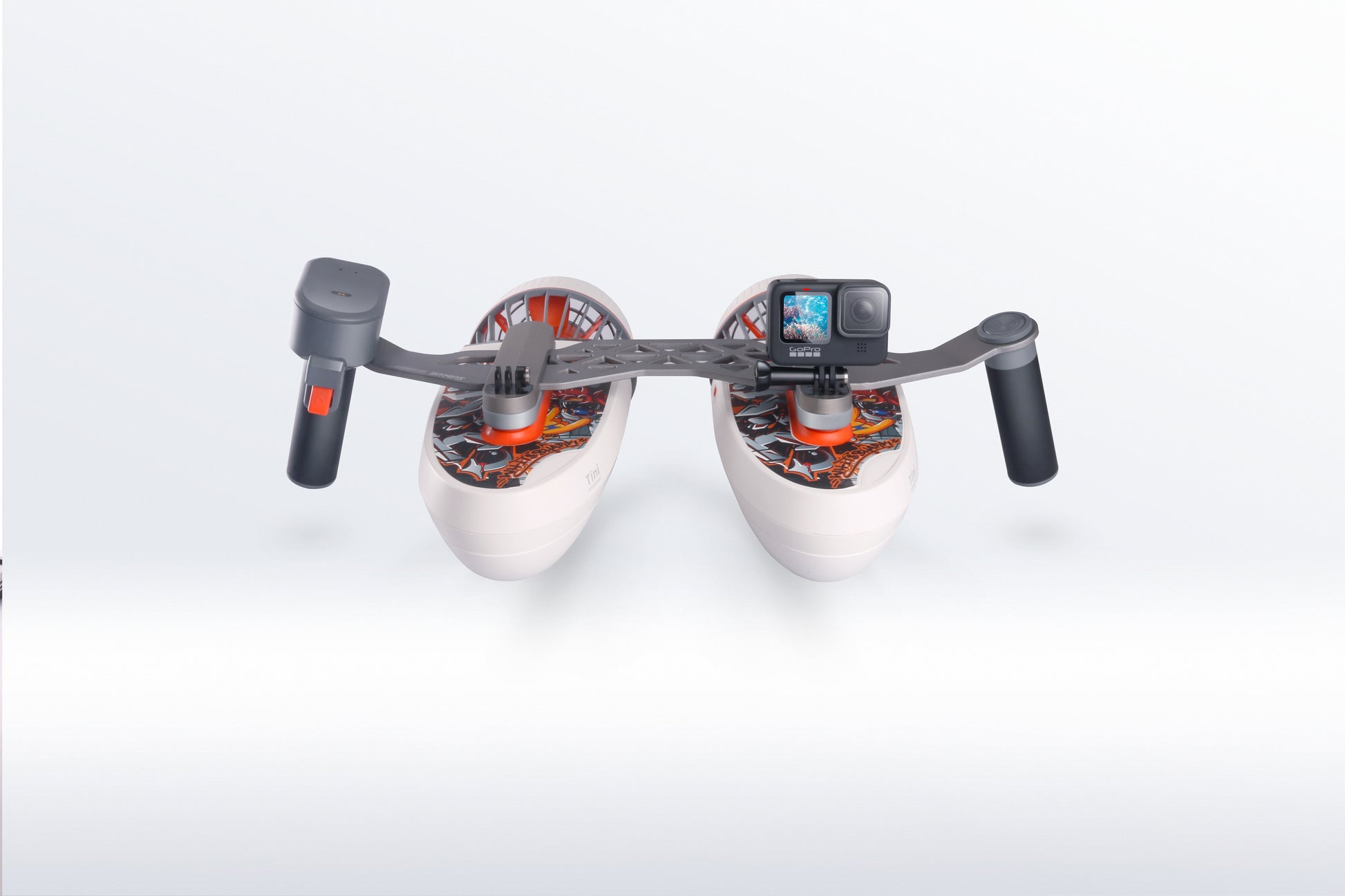

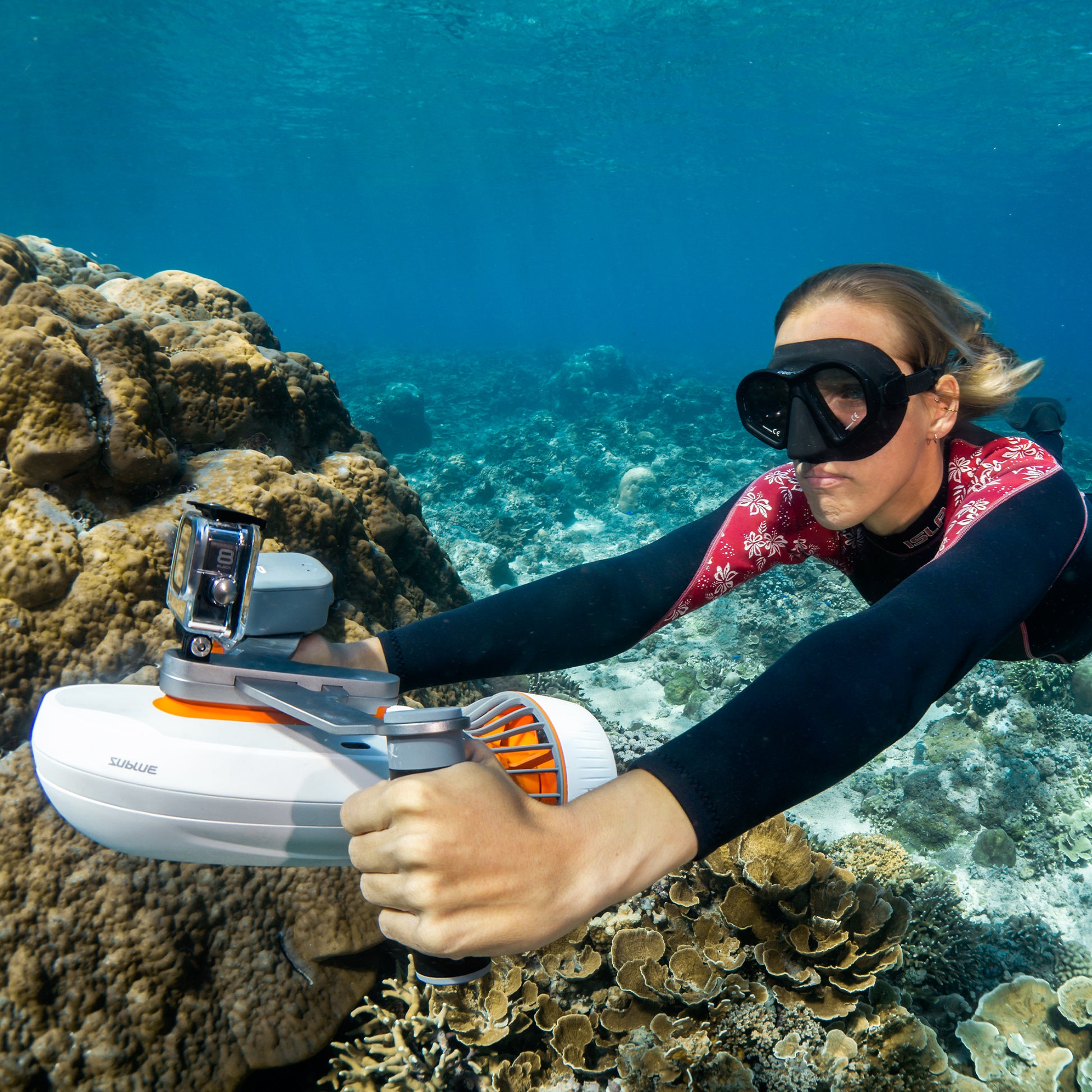

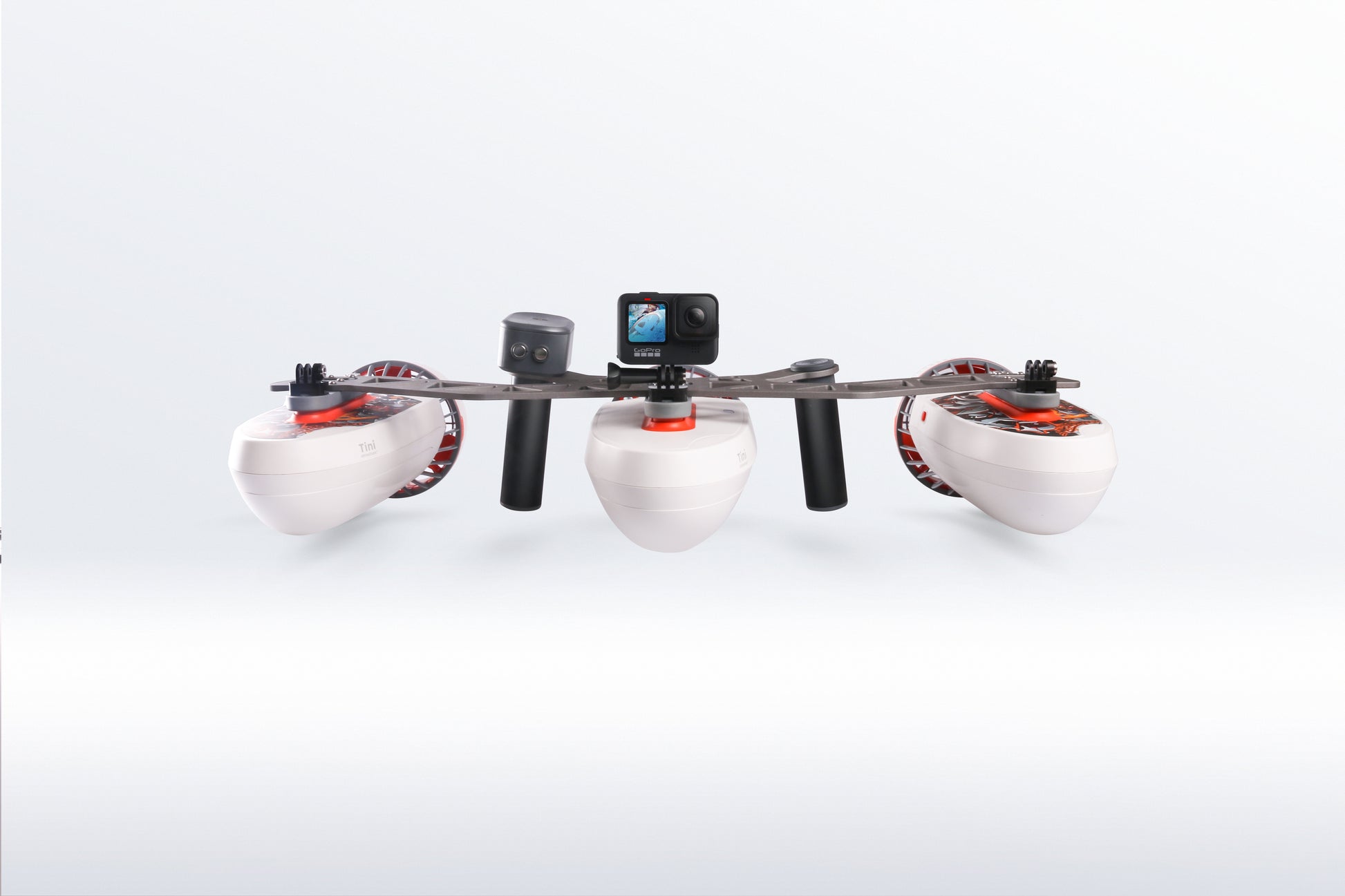

Tini adopts Sublue self-developed high-efficiency motion system and wireless control technology, innovative modular design, realizes the flexible assembly of components, is convenient to carry, and meets the diversified needs of single-boosting.Double-boosting, multiple-boosting, and motion assistance. Optional floater, mobile phone waterproof case holder, double-boosting combination handle, inflatable floating board andother official accessories. There is a standard sports camera hanging point under the front of the product, and a mobile phone waterproof case holder is added through the floater accessory shell to easily record underwater moments.
